GMT brick pallet is also called GMT block pallet, composite brick pallet,plastic block pallet, fiber brick pallet, glass fiber brick pallet, block machine pallet, etc. it is kind of plastic fiber block pallet used for concrete block machine, because the brick pallet price is cheap, low cost and good quality, very strong and long lasting,its normal life can reach 8 years more, even 10 years. As GMT brick pallet factory, RAYTONE brick pallet is better than others, mainly based on two factors, using better raw materials and higher pressing machine of 3000 tons pressure, to make sure the GMT block pallet is pressed extremely solid enough, in order to bear a heavy load of blocks and the block machine vibration.
GMT block pallet stands for glass fiber reinforced thermoplastic plastic pallet or glass fiber cloth reinforced thermoplastic composite block pallet. It is made of glass fiber as reinforcement material and thermoplastic resin as base material through crushing, heating, cooling and pressurizing. The density of GMT block pallet is 1200 kg/m3; it has been widely recognized by block machine users and has become the most widely used type of pallet. Because GMT block pallet is cheap and recyclable, durable, waterproof, high temperature resistant and lightweight, GMT block pallet is replacing traditional bamboo pallets, PVC pallets and wooden pallets.
Why do you need the block pallet for concrete block machine?
Block pallets are used as a base for concrete blocks, which are placed on brick pallets like eggs, so the role of brick pallets is to fix fresh concrete blocks. These concrete blocks are made under the vibration and pressing of large machines, so the pallet must be very strong and durable, so its raw material is very important. In this case, GMT block pallets came into being.
What is the Raw materials of GMT Brick pallet?
The raw materials of GMT Brick Pallets come from the leftover scraps used for automotive interior materials (such as car ceilings, polyethylene (PE) floor mats, car seat covers, etc.). These are not recycled or reused materials. These materials contain a lot of glass fiber, fiber and adhesive, but GMT Pallets can also form a smooth surface under high pressure pressing. The following are photos of the raw materials:
The process of making GMT Brick Pallets.
The raw materials of GMT brick pallets for automotive interior decoration materials are torn into small pieces through a crusher. Then, according to the different sizes of brick pallets, these torn materials are accurately weighed to a certain weight and other strong adhesives such as PP are added. Next, these weighed materials are wrapped in soft but thick high-temperature resistant plastic tarpaulins and heated to high temperatures in a heating machine. After a few minutes, the heated materials are taken out and placed on a custom-sized mold on a press, pressed at 3,000 tons of pressure for 5 minutes, then taken out, the residue on the pallet is removed, and it is placed on a cold press to cool it and become flatter. At this point, the final GMT brick pallet is made.
The advantages of RAYTONE GMT brick pallets
Protect the environment, because this material can be recycled, so it helps the earth reuse these materials, thereby reducing industrial waste; from this perspective, it is better than PVC brick pallets, bamboo brick pallets and wooden brick pallets.
In terms of actual use, the service life of fiberglass pallets is about 8 to 10 years, while the service life of PVC pallets is generally 6 years and the service life of bamboo pallets is 4 years.
From the cost perspective, PVC block pallets are the most expensive; the cost of bamboo pallets is slightly higher than that of Guttman brick pallets, so among all these brick pallets, Guttman block pallets are the best choice in terms of cost-performance ratio.
How to Choose the right GMT brick pallets for your brick factory?
Different raw materials have different costs because different materials have slight differences in performance. Therefore, the price of GMT brick pallets is determined by its raw materials and the content ratio of different materials.
Therefore, the key factor of GMT block pallets is its glass fiber content percentage. The higher the glass fiber content, the greater its hardness and the better its performance.
From the appearance of the brick stack, it is mainly necessary to observe its flatness, dimensional accuracy, and the materials used. If these aspects are good, then this is a high-quality brick stack;
GMT brick pallets specifications Comparing with other types brick pallet
1800KG/CBM (Heavy, not friendly for shipping cost)
Expensive
normal use
Bamboo Brick pallet
4 years
Perfect
normal
1050KG/CBM
Higher than GMT pallet
Normal use
Solid wood pallet with C-profile
7-8 years
Perfect
normal
700-750 KG/CBM
Slightly higher than GMT pallet with C-profile
steam curing
GMT brick pallet FAQ
(1) Why GMT brick pallet is friendly to environment?
Due to the nature of its raw materials, it utilizes surplus materials, which helps the earth digest those useless or excess materials. Therefore, using GMT brick pallets is a good deed for our home planet.
(2) Can GMT block pallet used for all the block machines?
Yes, GMT block pallets can be used in all block plants that require brick pallets, their sizes can be customized, and GMT pallets are heat resistant and can also be used in steam curing rooms for concrete blocks.
RAYTONE GMT plastic brick pallet can be used for RAYTONE block machine
RAYTONE GMT Plastic Pallet Board can be used for Hess Block Machine, Massa Block Machine, Halex Block Machine, Sinit Block Machine, Freema Block Machine, Kem Block Machine, Omag Block Machine, Rexel Block Machine, Pullensoran Block Machine.
(3) How many kinds of brick pallet in the market now?
There are mainly GMT brick pallet, PVC brick pallet, Bamboo Brick pallet, Wooden brick pallet; 4 types;
（4） How about the quality of your GMT block pallet? Do you have any quality standard?
GMT block pallet does not have a national or industrial standard yet, but RAYTONE brick pallet factory has our own quality standards, see below technical index:
Test Items
Quality Product Requirement
Test Standard
Water Soakage Rate
≤0.5%
Water Immersion
Flexural Strength
≥30MPa
ASTM D638
Flexural Modulus
≥2.0MPa
ASTM D638
Length and Width Deviation
±3mm
Actual Testing
Thickness
±1mm
Actual Testing
Impact Strength
≥12MJ/m2
ASTM D256
Shore Hardness
≥70d
Actual Testing
（5） Will GMT block pallet deform or get brittle failure when in low or high temperatures?
GMT block pallet will never get deformed in high temperature or get brittle failure in low temperature, because it is long fiber reinforced structured.
Type of Pallets
GMT block Pallet
PVC block Pallet
Common Plastic Pallet
Bamboo Plywood Pallet
Low Temperature Resistance
-40°C
-10°C
-10°C
-40°C
High Temperature Resistance
Distortion Temperature 90°C, anti-aging
Distortion Temperature 70°C, easily aging
Distortion Temperature 70°C, easily aging
easily aging when above 50°C
（6） How about the rigidity of GMT block pallet? Will it bend?
Rigidity means the property of anti-bending. GMT block pallet is similar to PVC block pallet about this aspect; but it is stronger than bamboo and plywood block pallet. Below is a comparison table about different kind block pallets at size of 850*680*18mm when loading on 115kg objects, see how many millimeters it will bend.
Type of block Pallets
GMT block Pallet
PVC block Pallet
Common Plastic Pallet
Bamboo Plywood Pallet
Max Distortion
6mm
5mm
12mm
7mm
（7) How about the toughness of RAYTONE GMT brick pallet? Is it easy to be broken?
It is not easy to get broken. To have a try, you can use a big hammer to pound the pallet with big strength. It will differentiate ours with PVC brick pallets if you have also tried the PVC pallet on the same condition, and finally you will find GMT block pallet is still good when PVC get broken. See below table:
Type of Pallets
GMT block Pallet
PVC block Pallet
Common Plastic Pallet
Bamboo Plywood Pallet
Impact Strength
20 MJ/m2
7 MJ/m2
5-12 MJ/m2
20-25 MJ/m2
Extent of Damage
Hard to break even cracked
Easy to be separated into pieces
Easy to be separated into pieces
Easy to come unglued and delaminate
(8) How heavy is it for GMT brick pallet?
GMT block pallet density is 1200 kg per cubic meter, while PVC block pallet is 1800 kg per cubic meter; so GMT block pallet is one-third less weight than PVC block pallet;

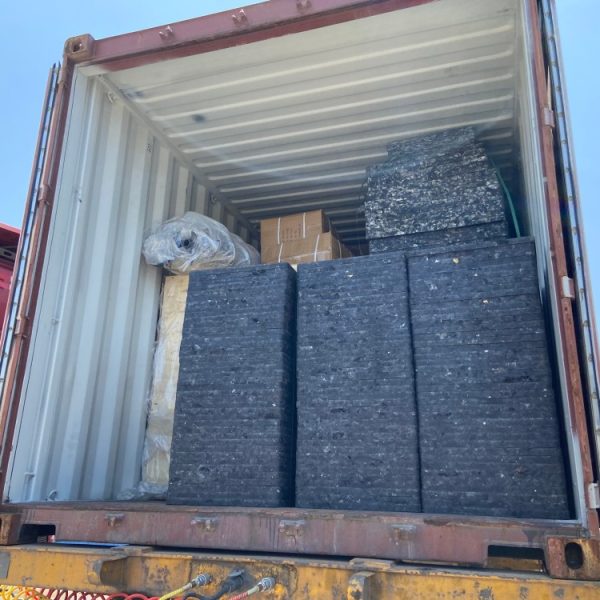

Less weight also means it is more friendly for shipping, nowadays the shipping cost is very high.
(9) Is GMT block machine pallet easy to be crushed when in the process of vibrating or broken in moving?
No. Our experiment shows that vibration has no effect on our pallet, and you can rest assured that it will not be crushed. Moreover, there is no broken phenomenon appearing when the pallet is locked on its moving along the iron chain. These all can be attributed to GMT’s strong physical characteristics. The below table shows the Bending Strength Remaining of different brick pallets after half a year using:
Type of Pallets
GMT block Pallet
PVC block Pallet
Common Plastic Pallet
Bamboo Plywood Pallet
Bending Strength Remaining
95%
91%
87%
78%
(10) What is the price for raw material of GMT brick pallet?
In the recent market, Polypropylene material is about 12.5 yuan/kg, and glass fiber is almost 11 yuan/kg, but it is only 8 yuan/kg for PVC. Moreover, PVC pallets can be mixed into 50% of calcium carbonate when producing, which is only 0.5 yuan/kg. But for GMT brick pallet, it can NOT be mixed with calcium carbonate, or it can not be molded. So, PVC pallet is cheaper according to its raw material.
(11) What is the reason of that your GMT brick pallet is so cheap?
The block pallet sales of Leitaien Block Pallet Factory are better than other block pallet factories, so our profit will be relatively low when selling in large quantities. Leitaien Block Pallet Factory only pursues a small profit to gain more market share.

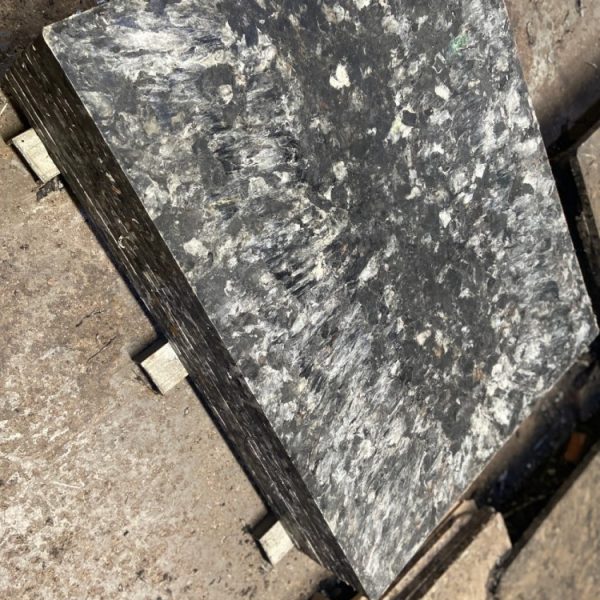

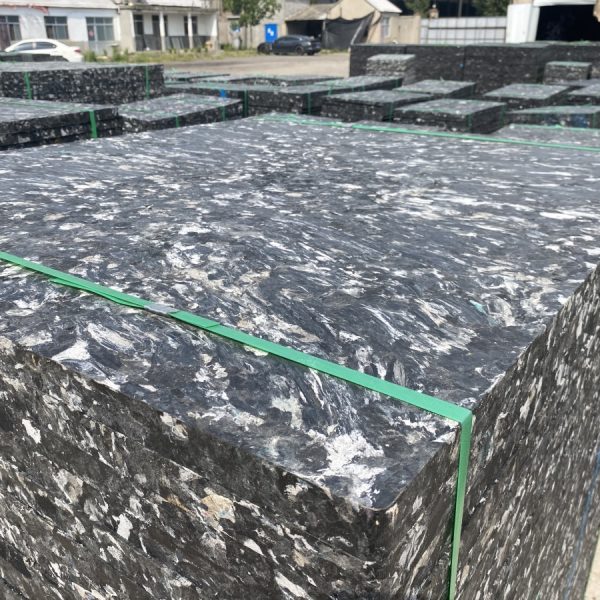

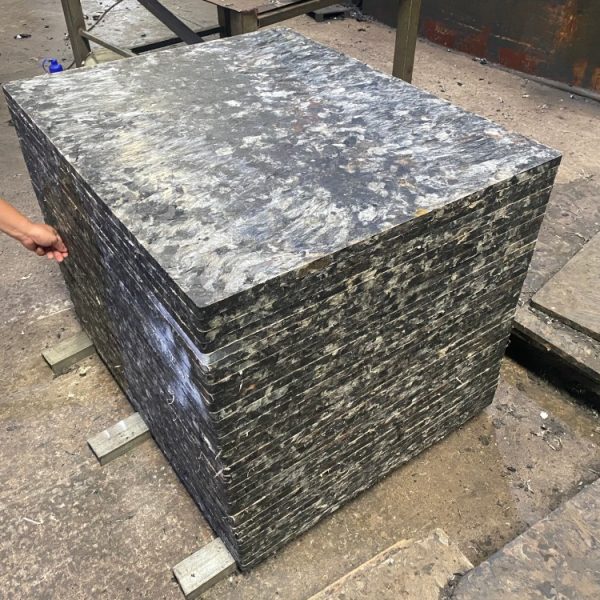

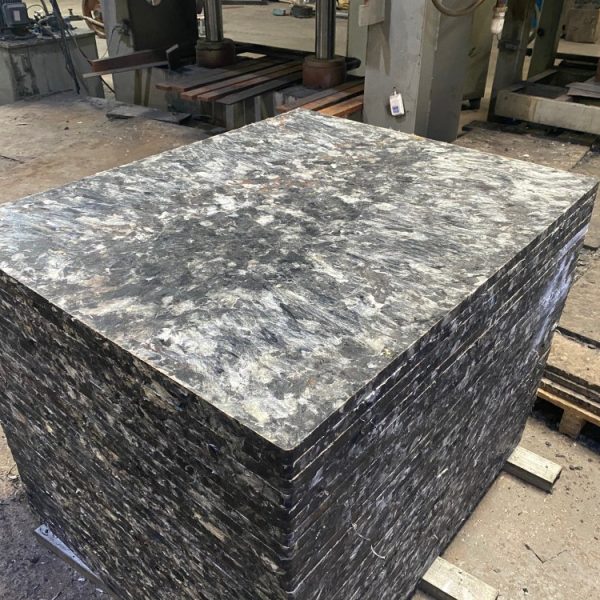

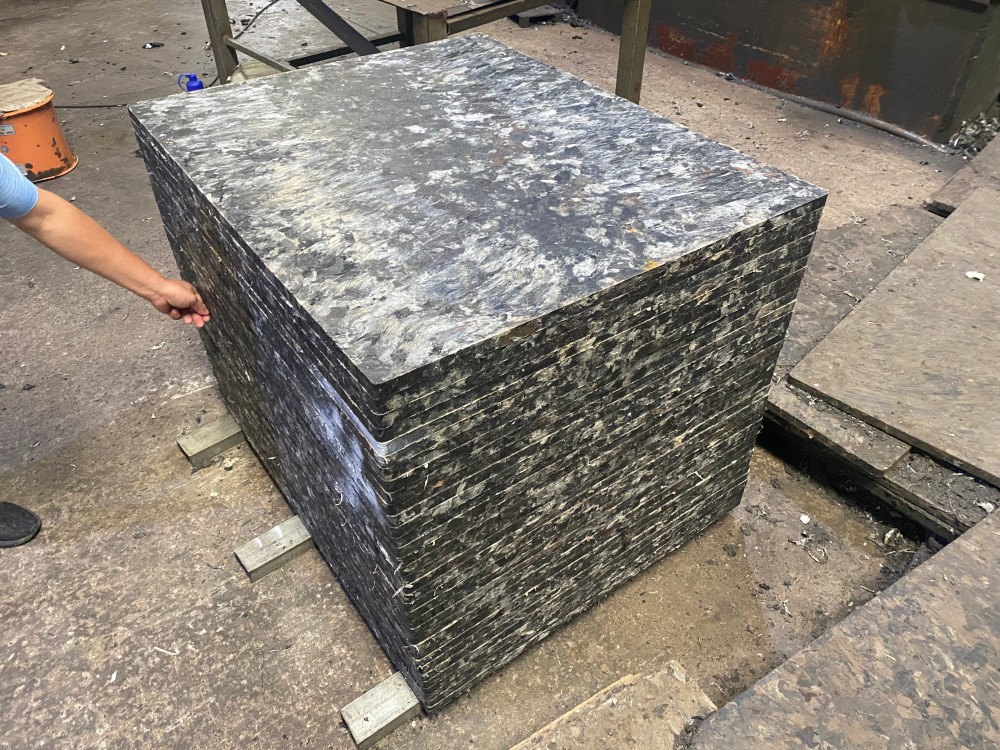

(12) Why some GMT block pallet looks like granite?
We all know that templates come in many colors, not to mention recycled templates. When making GMT brick pallets, these different color templates are mixed together and then pressed under 3,000 tons of pressure. The final product is as hard as granite. No matter how it looks, it will not affect its use.
(13) Does GMT block pallet come unglued or crack?
It won′t. GMT brick pallet is finished under 3000 metric tons press and high temperature of 200°C, so it will not come unglued and crack even in boiled waters, which is just 100°C.
