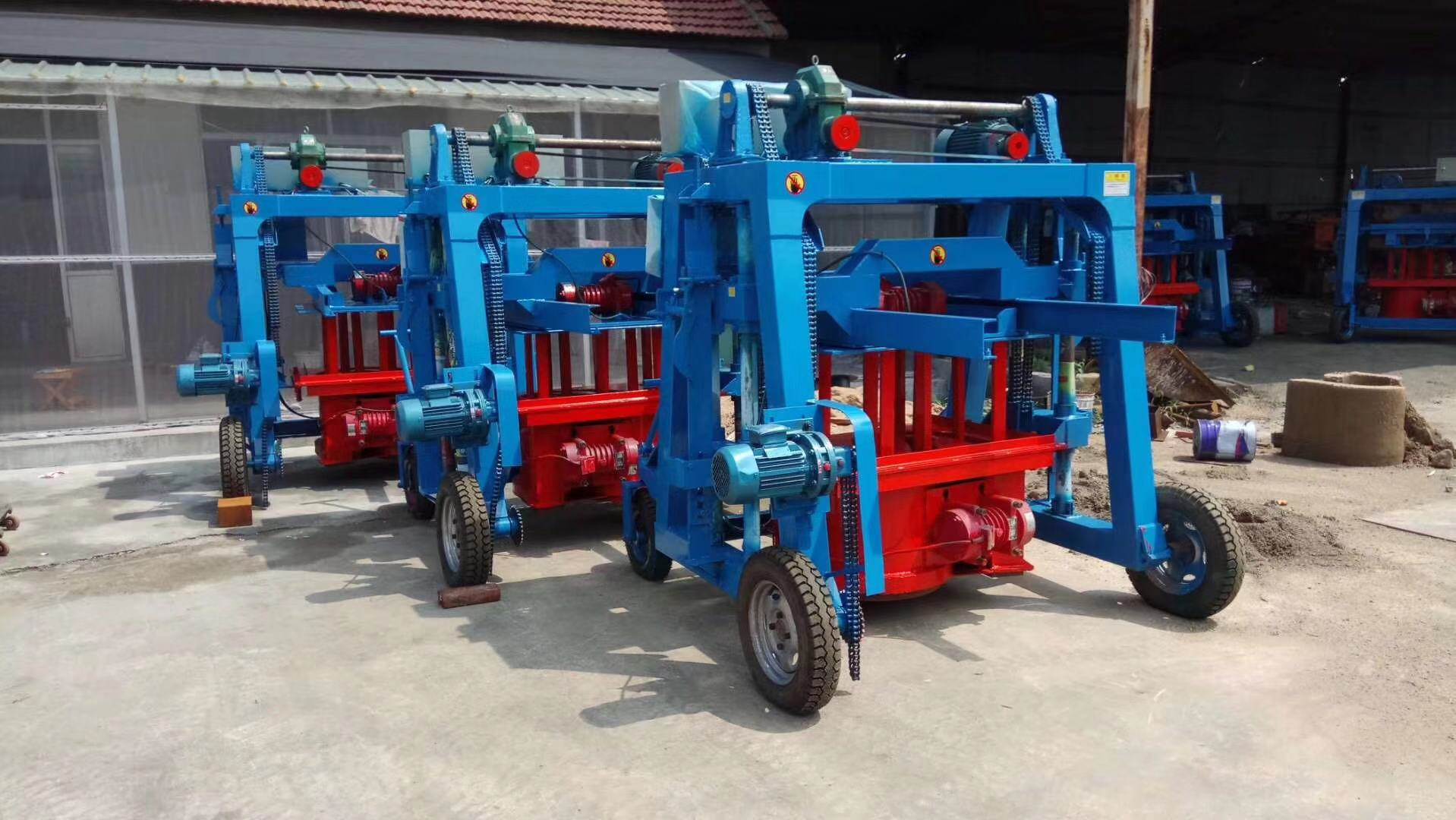

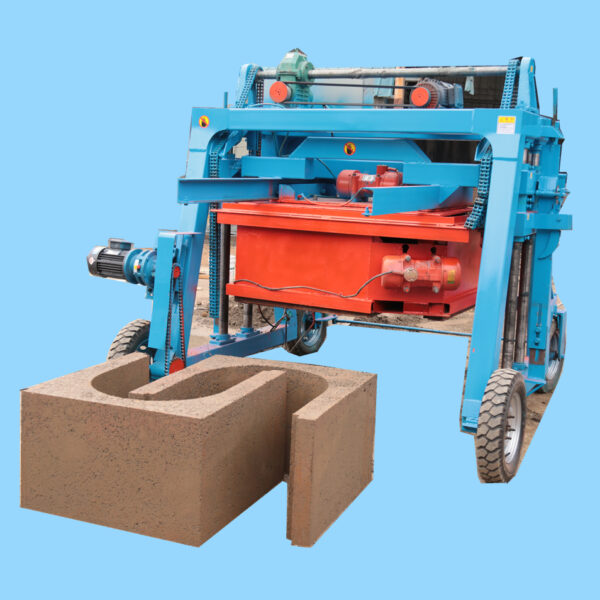

HX100 Concrete U Channel Making Machine
The concrete U channel making machine can make many different shapes and sizes of cement U channels, cement culvert, water drainage channel, precast concrete component, rectangle, arch concrete component, and can be used for U-shape strainer, trapezoidal channels; Curbstone, etc under different moulds.
The concrete U channel Making Machine Electric Power:
The concrete U channel making machine is equipped with three vibrators on the concrete component mould, the top one is 2.2KW on the pressing head, the lower is two sets of 3.0KW vibrators, on the bottom mould sides;
the mould lift motor of 2.2KW
The walking motor is 1.1KW
So the total power is 11.5KW
Concrete U Channel Making Machine Functions:
The concrete U channel making machine can make many different shapes and sizes of cement U channels, cement culvert, water drainage channel, precast concrete component, rectangle, arch concrete component, and can be used for U-shape strainer, trapezoidal channels; Curbstone, etc under different moulds.
Concrete U channels Making Machine Main Technical Parameters:
| Dimension: |
1950*2000*2300mm |
Power: |
11.5KW |
| Weight |
2000T |
Daily productivity |
200 pieces per day |
Concrete U channel Making Machine Raw Materials
This U channel making machine raw material can be same like concrete blocks, but its crushed stone or gravels size can be a little bigger than brick machine, because its mould is big too.
The Concrete U Channel Making Machine Working Principle:
The top vibration and bottom sides vibration vibrate at same time, can extrude the air from the raw materials quickly, to press the raw materials hard.
Customized Concrete U channel Making Machine
The standard U-shaped groove component has a height of 500 millimeters. Special height of 700 millimeters can also be customized, but it requires the use of dedicated U-shaped groove processing equipment.
The maximum length or diameter of the concrete components produced by this U-shaped groove processing machine is 1200 millimeters.
The following photos show the processing equipment specifically used for manufacturing U-shaped reinforcing bars with a height of 700 millimeters. This equipment is of a relatively high height, and the lifting part of its molds is operated by hydraulic cylinders. This lifting system is more stable when performing large-scale lifting.
Cement U channel Making Machine Advantages:
The U channel making machine is mobile, can walk and work on the concrete ground, so it doesn’t need the brick pallet like brick machine, its total investment is low;
