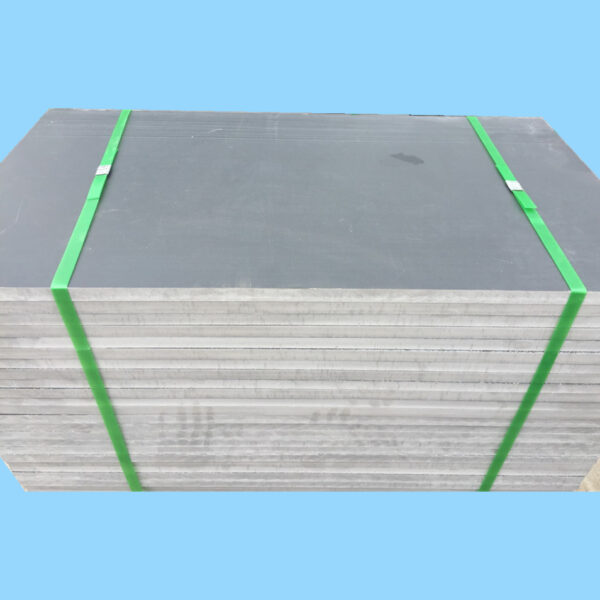

PVC brick pallet is also called PVC block pallet or plastic block plate, it is using PP particle as raw materials, adding variety of reinforcement, integrated by high temperature heating and extruded to be plastic plate by high pressure.
PVC brick pallet is used for holding up the concrete blocks during the block making process by block machine; PVC brick pallet can be used as heavy duty bearing pallet, its density is 1800 KG per cubic meters, it is very heavy among Bamboo brick pallet, GMT brick pallet, Fiber brick pallet etc. The PVC brick support board is a new type of load-bearing tool developed to replace the traditional bamboo wooden support boards. It is mainly used in the drying process of non-fired brick blanks. This product has high strength, impact resistance, and anti-aging properties. Its service life is approximately 10 times that of traditional boards. The thickness range is 12-40mm, and it supports customization of size as needed. The product also has waterproof, moisture-proof, and acid-base corrosion resistance properties, and can adapt to the brick drying and curing environment. It is also recycled at half price through a recycling mechanism.
Manufacturing Technique of PVC Brick Pallets
Using polyvinyl chloride resin as the main material, combined with reinforcing fibers and anti-aging agents, it is processed through three stages: mixing, extrusion, and shaping:
In the mixing process, UV absorbers are added to enhance the weather resistance for outdoor use.
The extrusion molding adopts twin-screw technology to ensure the density of the material.
The temperature of the shaping mold is controlled at 180 ± 5℃ to ensure dimensional stability.
The Specifications of PVC Brick Pallet
Model
PVC pallets
Thickness
15-30mm
Density
1800KG/M3
Temperature Tolerance
110°C
Impact Strength
More than 83 KJ/m2
Bending Strength
More than 60 N/mm2
Application
For brick or block pallet
Surface
Smooth and hard
Flexural Modulus
More than 4.5×10³Mpa
Absorption
Less than 0.4%
Ageing Resistance
5-6 years
What are the Advantages of PVC Brick Pallet?
Smooth surface, suitable for manufacturing computer cases and kerbs.
Extremely hard, with a density of up to 1800 kilograms per cubic meter.
Lifespan can reach 6 years.
Environmentally friendly.
Recyclable and can be resold.
Excellent waterproof and moisture-proof performance.
Strong screw-fixing capacity.
Higher compressive strength.
PVC brick pallet is also called PVC block pallet or plastic block plate, it is using PP particle as raw materials, adding variety of reinforcement, integrated by high temperature heating and extruded to be plastic plate by high pressure.
