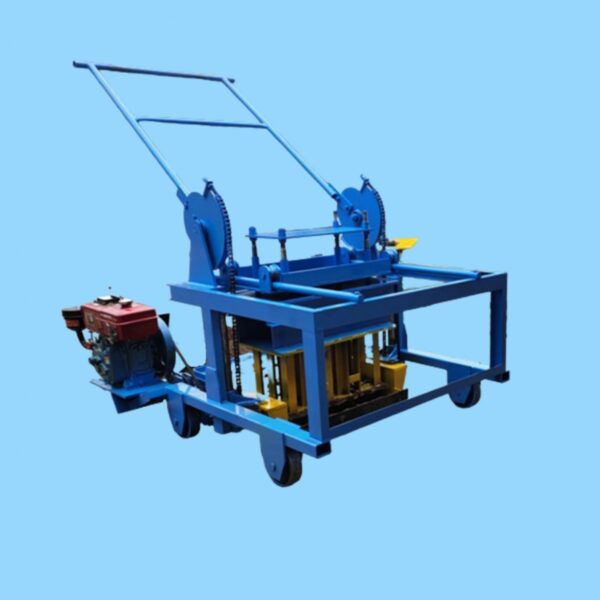

Diesel Movable Block Making Machine – QMY4-45 Model

QMY4-45 concrete block making machine is using a 10 HP diesel engine movable block machine, so it has enough power to make strong blocks, and only 2 to 3 workers can operate the diesel block making machine;

Its theoretical daily capacity is 2560 pieces of 8 inch hollow block;

It is matched with a diesel JQ350 concrete mixer, so it doesn’t need electric power totally;

Get A Quote

Diesel Movable Block Making Machine – QMY4-45 Model

Diesel Movable Block Making Machine – QMY4-45 Model

The QMY4-45 concrete block manufacturing machine is a mobile block manufacturing equipment powered by a 10-horsepower diesel engine. Therefore, it has sufficient power to produce sturdy blocks, and only 2 to 3 workers are needed to operate this diesel block manufacturing machine. Its theoretical daily production capacity is 2,560 8-inch hollow blocks; it is equipped with a diesel-driven JQ350 type concrete mixer, so no power supply is required at all.

Each Machine of QMY4-45 Block Machine

1.JQ350 Concrete Mixer

Dimension: 1.8*1.2*1.4M Weight: 350KG
Diesel engine power: 10 HP Input 500L
Diesel consumption: 2L/Hour Output 350L
QMY4-45 Diesel Movable Block Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine

2. QMY4-45 Brick Making Machine

Diesel engine power 10 HP Dimension: 2420*1320*1650mm
Moulding cycle 45 seconds weight 1100KG
Work Area: 300-500 Square Meters Daily capacity: 2560 pieces per day
Diesel consumption: 2L/Hour
QMY4-45 Diesel Movable Block Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine QMY4-45 Diesel Movable Block Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine QMY4-45 Diesel Movable Block Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine

Daily Capacity of  QMY4-45 movable brick machinery

standard brick 240*115*53 26pcs/mould 12000pcs/8h
porous brick 240*115*90 9pcs/mould 5760pcs/8h
hollow block 390*190*190 4pcs/mould 2560pcs/8h
hollow block 390*150*190 5pcs/mould 3200pcs/8h

Material Ratio of  High Quality Concrete Blocks

a. 8-10% cement, 30-40% sand, 50-60% crushed stone. b. 8-10% cement, 30% fly ash, 60% sand or stone powder.

Certificates of Brick Making Machine

Working Video of QMY4-45 Diesel Movable Block Making Machine:

QMY4-45 Diesel Movable Block Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine

QMY4-45 Diesel Movable Block Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine

QMY4-45 Diesel Movable Block Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine

QMY4-45 Diesel Movable Block Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine

QMY4-45 Diesel Movable Block Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine



QMY4-45 concrete block making machine is using a 10 HP diesel engine movable block machine, so it has enough power to make strong blocks, and only 2 to 3 workers can operate the diesel block making machine;

Its theoretical daily capacity is 2560 pieces of 8 inch hollow block;

It is matched with a diesel JQ350 concrete mixer, so it doesn’t need electric power totally;
