Automatic Clay Brick Making Machine – QT4-10 Model
There are mainly QT4-10,QT5-10 QT7-10 QT10-10 Models
Automatic Clay brick making machine working principle: clay bricks are forming via high pressure pressing; the pressure can differs from 50 ton, 100 tons 150ton, 200tons;
The automatic clay brick machine can make various interlocking bricks, chain bricks, pavement bricks, etc via changing the different brick moulds.
Product Description
QT4-10 Clay Brick Making Machine

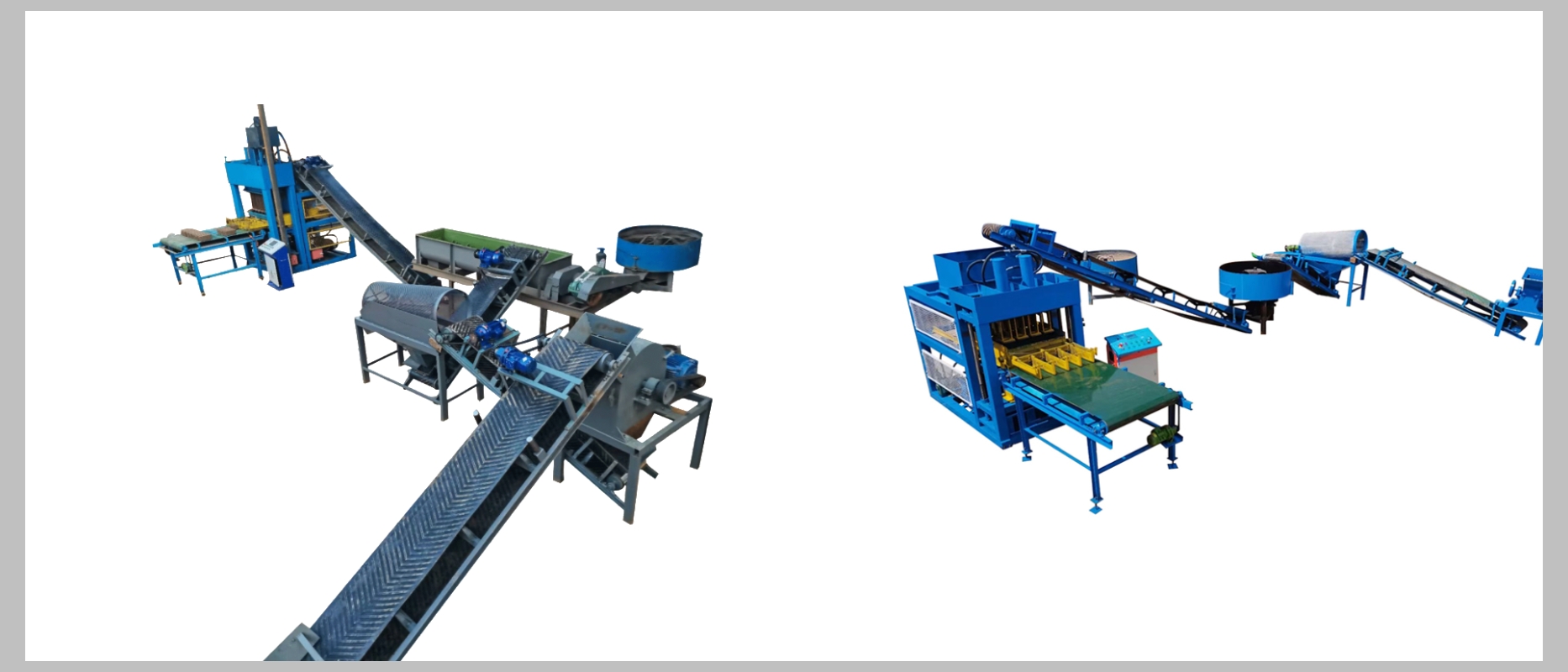

Aproximate Investment Information of QT4-10 Block Production Line
| TotalPowerConsumption | 25.25 kw/h; 202 kw/8 hours |
| Max. Material Consumption Per 8 Hours a. 10% cement, 90% clay b. 250-125-75MM; 2 holes hollow block | Water: about 922 kgs Cement: about 4515 kgs Clay: about 40643 kgs |
| Block factory size: | At least 800 square meters |
| Works/8hour shift | 5-6 workers in factory |
Each Machine of QT4-10 Clay Brick Production Line
① Belt Conveying Machine #1
The belt conveying machine is Used to transport raw materials of soil to the soil crusher.
| Length | 3M | Power: | 0.75KW |
| Width | 75CM | Speed: | 2M/S |
| Weight: | 150KG |
② Soil Crusher
The soil crusher is used to crushing the soil into small powder
| size | 1100*1100*1400mm | Power: | 5.5KW |
| weight | 120kg | Capacity: | 500KG/Hour |
③ Belt Conveying Machine #2
The specification is same with #1, this is used to transport the crushed soil into the screener.
④ Soil Screening Machine
| power: | 3KW | capacity: | 480KG/H |
| weight: | 320kg | diameter: | 500mm |
⑤ Belt conveying machine #3
The specification is same with #1. This one is used to transport the screened soil into the pan mixer;
⑥ JQ500 Pan Mixer
| diameter | 1500mm | power: | 7.5KW |
| height: | 1300mm | Input: | 800L |
| Weight: | 500kg | Output: | 500L |
| Mixing cycle: | 5 minutes | productivity | 10 cubic meters/hour |
⑦ Belt conveying Machine
Application: used to transport the soil from mixer to automatic clay brick making machine.
| Length: | 5M | power: | 2.2KW |
| width: | 750mm | Weight: | 300KG |
⑧ Host Automatic Clay Brick Making Machine
QT4-10 clay brick machine Specifications
| power: | 7.5 KW | Pressure: | 31 mpa |
| moulding cycle: | 7-10s | Weight: | 1600kg |
| working method: | hydraulic pressure | Dimension: | 2260*1500*2380mm |
| Daily Capacity: | 9600 pieces |
Other automatic clay brick machine models
① QT5-10 Clay brick-making machine Specifications
| power: | 15 KW | Pressure: | 16-22 mpa |
| moulding cycle: | 7-10s | Weight: | 1800kg |
| working method: | hydraulic pressure | Dimension: | 2520*1450*2500mm |
| Daily Capacity: | 12000 pieces |
QT5-10 Clay brick making machine Capacity
| Size (mm) | Pieces/Mould | Pieces/Hour | Piece/day |
| 300*150*100 | 5 | 1500 | 12000 |
| 200*100*60 | 5 | 1500 | 12000 |
QT4-10 clay brick machine Specifications
| power: | 7.5 KW | Pressure: | 31 mpa |
| moulding cycle: | 7-10s | Weight: | 1600kg |
| working method: | hydraulic pressure | Dimension: | 2260*1500*2380mm |
| Daily Capacity: | 9600 pieces |
② QT7-10 Clay brick making machine Specifications
| power: | 15 KW | Pressure: | 31.5 mpa |
| moulding cycle: | 7-10s | Weight: | 2000kg |
| working method: | hydraulic pressure | Dimension: | 2600*1800*220 0mm |
| Daily Capacity: | 13440 pieces |
QT7-10 Clay brick making machine Capacity
| Size (mm) | Pieces/Mould | Pieces/Hour | Piece/day |
| 300*150*100 | 7 | 1680 | 13440 |
| 200*100*60 | 7 | 1680 | 13440 |
③ QT10-10 Clay brick making machine Specifications
| power: | 18 KW | Pressure: | 32 mpa |
| moulding cycle: | 7-10s | Weight: | 2600kg |
| working method: | hydraulic pressure | Dimension: | 2860*1500*2380mm |
| Daily Capacity: | 9600 pieces |
QT10-10 Clay brick making machine Capacity
QT4-10 Clay brick machine daily Capacity
| Size (mm) | Photo | Pieces/Mould | Pieces/Hour | Piece/day |
| 300*150*100 |
| 4 | 1200 | 9600 |
| 300*150*100 |
| 4 | 1200 | 9600 |
| 300*150*100 |
| 4 | 1200 | 9600 |
| 200*100*60mm |
| 4 | 1200 | 9600 |
| 200*100*60 |
| 4 | 1200 | 9600 |
The main difference between an automatic brick-making machine and an automatic concrete block-making machine lies in their working principles: The clay automatic brick-making machine both presses from the top and lifts up from the bottom; while the cement automatic block-making machine presses from the top and vibrates at the bottom; this is because of the different characteristics of the raw materials.
Advantage of Automatic Clay Brick Making Machine
- The entire automatic clay brick machine is equipped with an intelligent PLC control system and is combined with a hydraulic drive device.
- There is a touch screen on the PLC control box. You can adjust the pressure by touching the screen, and the operation is very simple.
- A high-quality and low-noise hydraulic vane pump is adopted as the main oil pump to provide strong oil pressure for the pressing of clay bricks, and this hydraulic pressing method generates extremely low noise.
- The renowned solenoid valves and proportional valves are the core components of the hydraulic system. These two types of valves can ensure rapid and precise control of the hydraulic movement, thereby enabling the finished bricks to obtain sufficient pressure and precise dimensions.
- The water cooling device can prevent the hydraulic oil from overheating, thereby ensuring that the clay brick machine can operate smoothly.
- This plunger pump adopts an air bladder clamping design, which is used to remove air from the raw materials; thus, the bricks can become flat and uniform.
- There are two cylinders on the upper mold and one cylinder beneath the lower mold. The pump applies pressure from both the top and the bottom, thus making the bricks very sturdy.
6. FAQ
① How to adjust the brick height when need?
The height of the bricks can be adjusted by turning the screws.
② How many land area is needed for automatic clay brick machine
For this workshop, a 70-square-meter space is sufficient to meet the usage requirements of these automatic clay brick machines.
However, for the curing area, since the land area required for the production of different bricks varies, the area of the curing area needed for the automatic clay brick machine ranges from 1,200 square meters to 2,500 square meters.
③ How many workers are needed for automatic clay brick making machine?
5 Workers in total. A worker loaded the soil onto the conveyor belt conveyor, preparing for the next round of crushing operation.
A worker poured cement and water into the mixing basin.
A worker was operating the automatic brick-making machine.
Two workers were transporting the fresh bricks from the brick receiving area to the curing location.
④ What is the ratio for making clay bricks
Material Ratio for Bricks: 5%-10% cement and 90%-95% soil
⑤ What after-sale service do you supply
We will supply customers manual and install video and we will can send our engineer to customers place to help customer install machine and train workers
⑥ What is the Raw Material Consumption in one day
Here we take 300*150*100mm bricks as example and recommend 8% cement.
| Size of Brick | 300*150*100mm lego brick |
| Capacity of Brick | 14400 bricks in one day |
| Material Ratio | 8% cement and 92% soil |
| Consumption of Cement | 6912 KG per day |
| Consumption of Soil | 79488 kg per day |
| Consumption of water | 2-3 tons |
Clay Brick Samples and Finished Blocks
Client can choose the clay brick model from the below photo to confirm the brick moulds.
