This brick machine is a popular selling semi automatic brick making machine line, It can produce different size and types of hollow blocks, paver bricks, interlocking block, curbstone,etc via changing different brick moulds.
Low cost and durable
Easy operating
Automatic in material feeding and martial distributing
Automatic in material scraping and brick-discharging
Seme Automatic Block Making Maching – QT4-24 Series
QT4-24 cement block machine daily productivity is 4428 pieces per 8 hours for 8 inch hollow block.
QT4-24 Cement Brick Machine line price is from 6000 USD to 12000 USD as per Different Configuration;
QT4-24 Block Machine
1. QT4-24 Cement Brick Machine line Basic requirements for Start this brick plant:
the following information for QT4-24 hollow block machine is theoretically for reference, it will be a little different vary from different clients as per their real production condition.
land area
300 Square Meters
Water Consumption
2.5 T/day
Workshop area
50 Square Meters
Electricity Voltage &Frequency
220V/380V/415V;50HZ/60HZ
Labors Quantity
6 workers
Power Consumption
22.45KW*8 Hours=179.6 KWH;
Cement Consumption
7.3Tons per day
Sand consumption
29.2 tons per day
Crushed stones consumption
36.5 tons per day

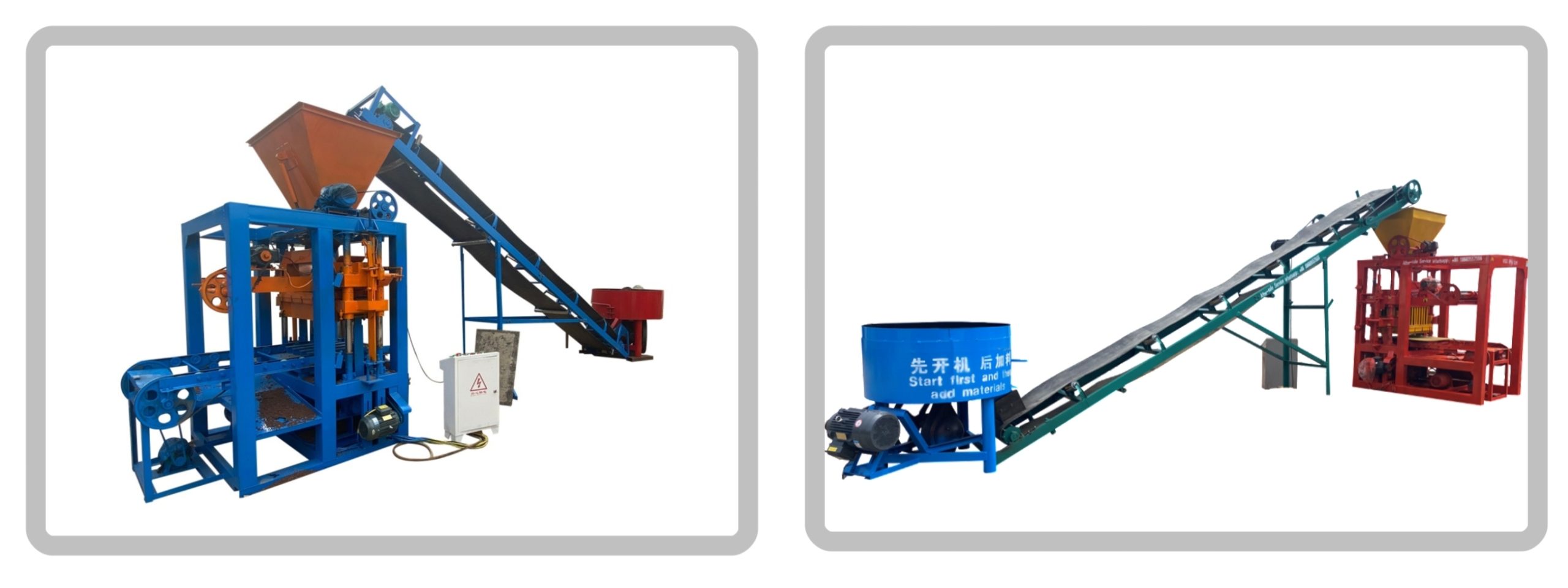

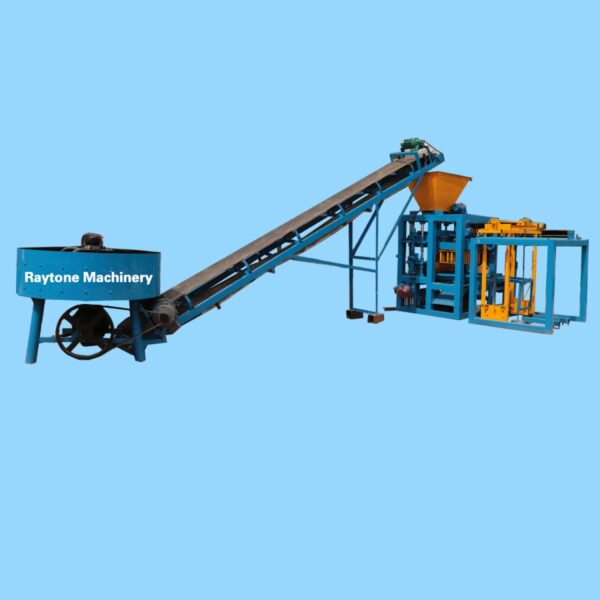

Detailed Introduction of each single machine from QT4-24 block machine line

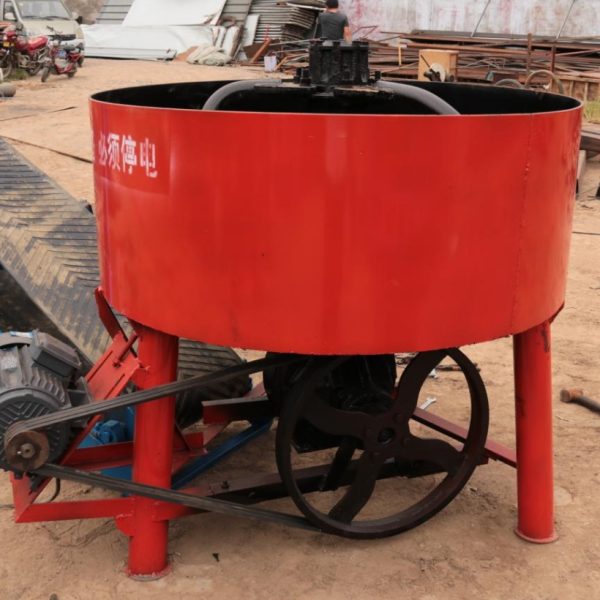

(1) JQ350 concrete mixer for QT4-24 Paver Brick Machine
Diameter 1.2 M
Power: 7.5-4KW or 5.5-6KW
Input : 500L
Output: 350L
Dimension: 1.2*1.2*1.4 M
Weight: 350KG
About the Concrete Pan Mixer
RAYTONE block machine factory is using truck rear axle instead of normal gear reducer more now; this makes the concrete mixer stronger and more durable.
The buyer can also fix one 10 CM round steel plate on the top of the mixer, in order to avoid the raw materials coming out when the mixing blades are at high rotating speed.
Also there are Two ways to make the mixer more anti-friction
Fix the spacers on the interior and bottom of the pan mixer, the spacers can be replaced by spare. The spacers can be changed one by one if any is broken, but adding spacers is a little costly;The second method is to Fix one round steel sheet inside the pan mixer, this will also increase the sturdiness.

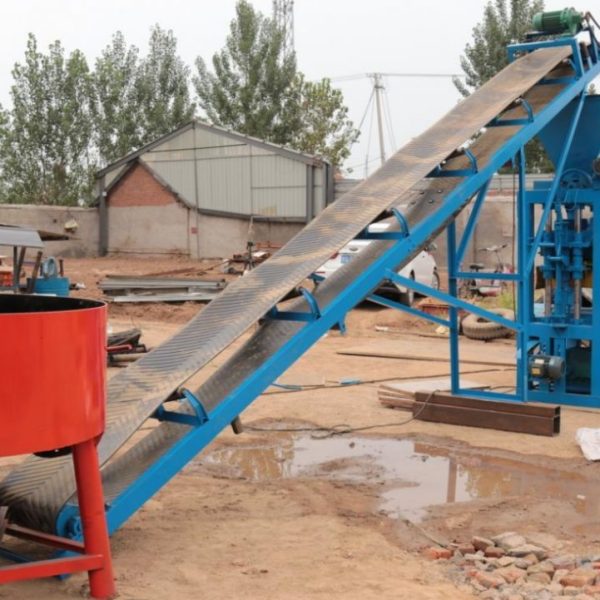

(2）6 M belt conveyor for QT4-24 Cement Brick Machine
Power: 1.5 KW
Type: Chain type
Belt width: 400mm
Length: 6 M;
Client can also choose 7 meters or 8 Meters length belt conveying machine as per the land area.

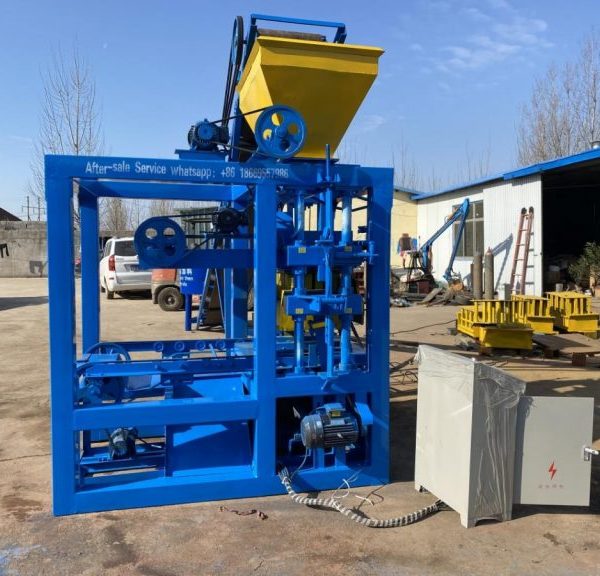

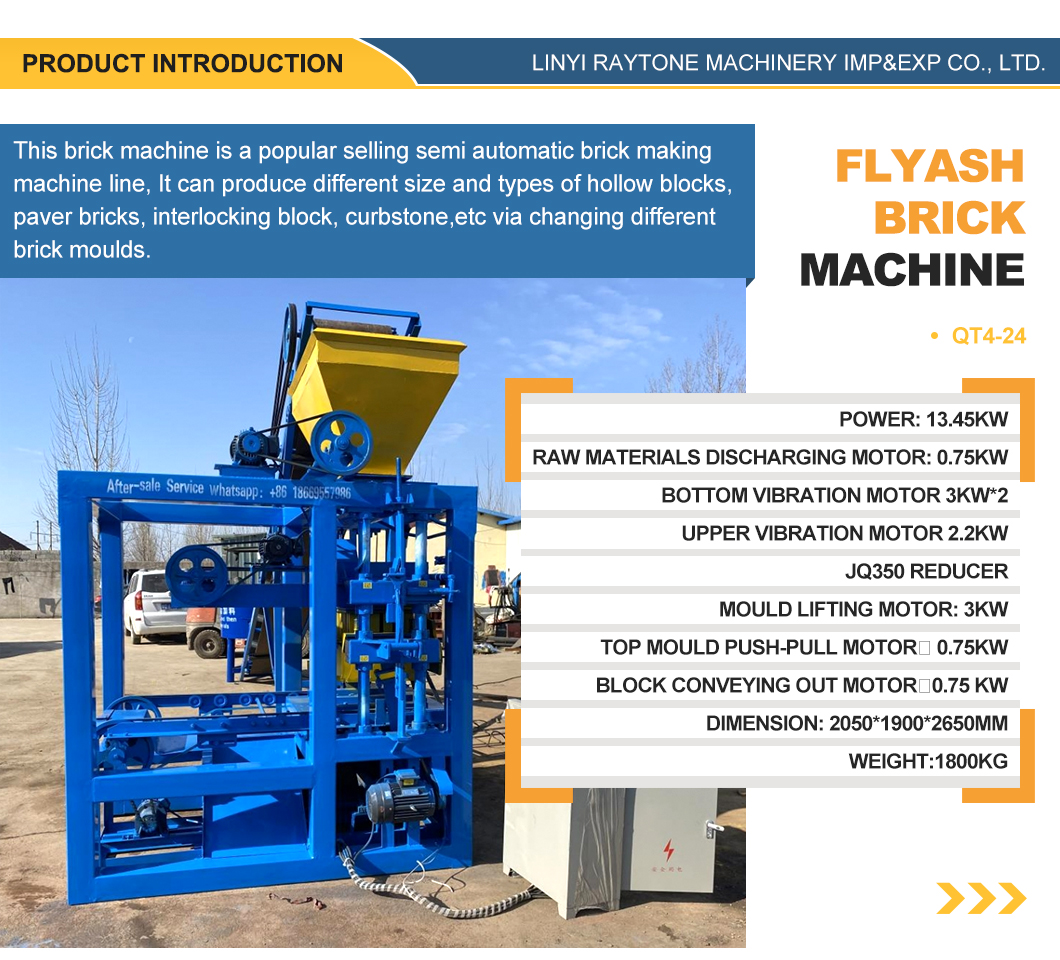

（3) QT4-24 Host Flyash Brick Machine
Power: 13.45KW
Raw materials discharging motor: 0.75KW
Bottom Vibration Motor 3KW*2
Upper Vibration Motor 2.2KW
JQ350 Reducer
Mould lifting Motor: 3KW
Top Mould Push-Pull motor： 0.75KW
Block Conveying out motor：0.75 KW
Dimension: 2050*1900*2650mm
Weight:1800KG
RAYTONE block machine factory is using JZQ350 reducer for the brick machine instead of using JZQ250 reducer.
Better Control System:
The raw materials are automatically fed in the bottom mould, then need to spread raw materials evenly, then press MOULD IN button, once top mould is going into bottom mould, the bottom gearbox vibrating box will vibrate automatically and the top vibrator also vibrate at the same time, after vibration is done, the top mould automatically lift up. then block is conveyed automatically. The work efficiency is much improved, no need to press the buttons on the electric cabinet for every movement.
Automatic feeding raw material, Automatic pull-push mould, automatic blocks conveying out, This is how this block machine is called Semi Automatic Block Machine.
（4）Brick Conveyor Trolley for QT4-24 Semi Automatic Block Machine
The manual block conveying trolley is used to carry the finished blocks to curing area.
One block machine line is with two sets of manual block conveying carts.
（5） Block Stacking Machine (this is upgraded configuration, equipment with this stacking Machine, no need the manual brick conveyor trolley, but need an electric forklift to carry stacked blocks to curing area. Or use the manual trolley dedicated for stacking machine)
Power: 1.5 KW
Dimension:1.75*1.75*2.3 M
Weight: 500KG
Productivity of QT4-24 Cement Block Machine
Theoretical production capacity for QT4-24 flyash brick machine
Size(LxWxH) (mm)
Forming Period (S)
Pcs/ Mould
Pcs/Hour
Pcs/ 8 hours
(1)
hollow block 400*250*200
24
3
415
3321
(2)
hollow block 400*200*200
24
4
554
4428
(3)
hollow block 400*150*200
24
5
692
5535
(4)
hollow block 400*100*200
24
7
969
7749
(5)
Solid Brick 240*50*115
24
26
3598
28782
(6)
Porous Brick 240*115*90
24
12
1661
13284
(7)
Curbstone 500*200*300
24
2
277
2214
(8)
“I” shape paver brick without color 200*163*60
24
8
1107
8856
(9)
“S” Shape Paver Brick without color 225*112.5*60
24
12
1661
13284
(10)
Holland Brick without color 200*100*60
24
14
1938
15498
(11)
Square Paver wihtout color 250*250*60
24
3
415
3321

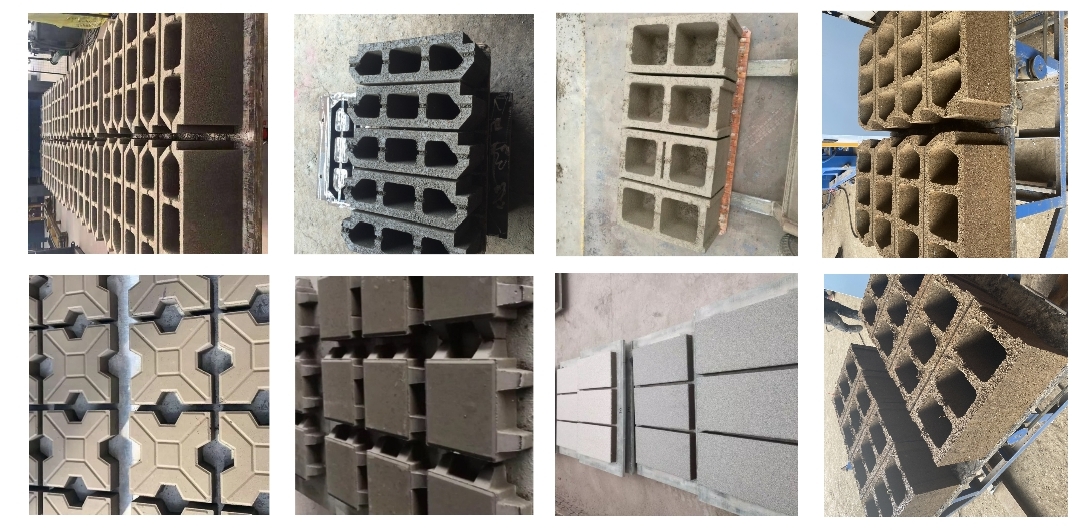

The blocks made from QT4-24 Brick Making Machine
The QT4-24 brick machine can make all the types of concrete blocks like, hollow block, solid brick, paver bricks, curbstones, from cement, fly ash, crushed stones, dust raw materials etc.

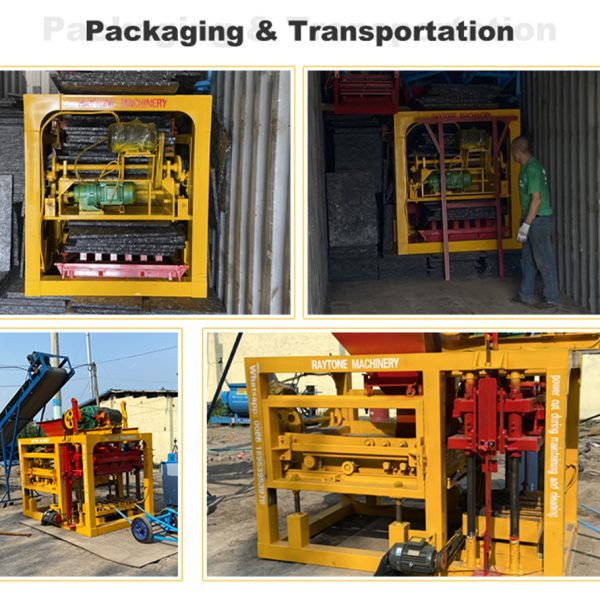

6.Packing List of QT4-24 Block Machine
1
JQ350 Pan Mixer
1 set
5
Block Stacking Machines
1 set
2
6M Belt Conveyor
1 set
6
Manual trolleys
2 sets
3
QT4-24 Host Brick Machine
1 set
7
GMT brick pallet
600 pieces
4
Electrical PLC control Panel
1 set
8
Spare parts
1 set
