QT4-40 Manual Brick Making Machinery

QT4-40 Hollow block machine productivity is 2880 pieces of 8 inch hollow blocks per day. QT4-40 Solid block machine price is from 3700 USD to 10000 USD, depends on the extra mould quantity. QT4-40 block machine Basic Requirement to start The following information is take 8 inch hollow block for example for the client reference, the production data may be a little different as per different block or brick producing.

Main Featuers of QT4-40 Manual Brick Making Machine

1. The design is novel, the structure is simple, and it is easy to install and operate.
2. High vibration ensures high density of the finished product, suitable for solid bricks and pavers.
3. A proper ratio of raw materials can produce high-strength standard bricks, which can be stacked immediately after molding.
4. Utilizing a lower power to achieve excellent vibration effects, enabling the flow filling and sealing of various materials and fillers.

Each Machine Parameters about QT4-40 Manual Block Machine

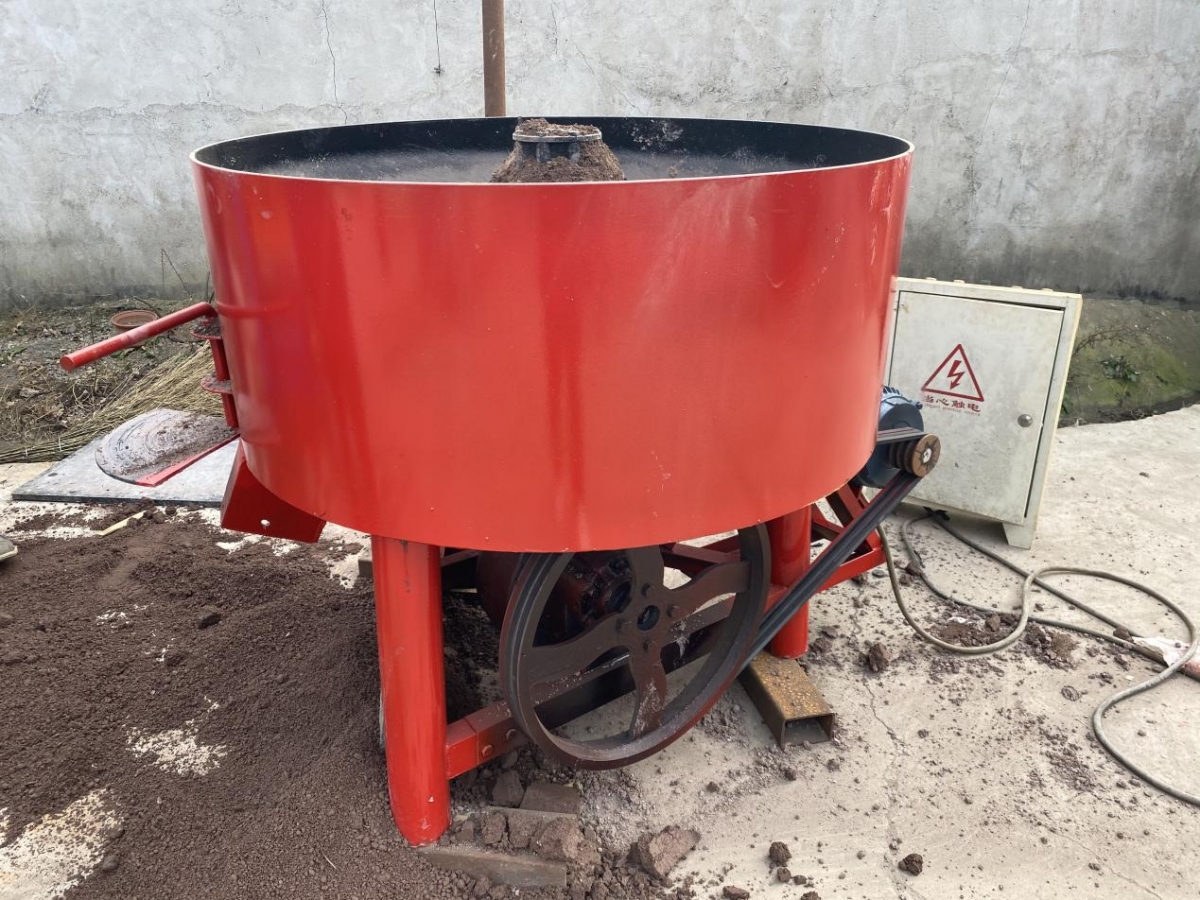

(1) JQ350 Concrete Mixer for QT4-40 Brick Machine

• Diameter: 1.2 M
• Power: 7.5KW
• Input : 500L
• Output: 350L
• Dimension: 1.2*1.2*1.4 M
• Weight: 350KG
• Function: Make the components uniform both macroscopically and microscopically; Break the agglomeration of cement particles and promote the development of dispersion; Destroy the initial hydration film coating on the surface of cement particles; Promote the collision and friction between material particles, reducing the influence of dust films; Increase the number of times each unit of the mixture participates in movement and the frequency of crossing of movement trajectories, accelerating homogenization.

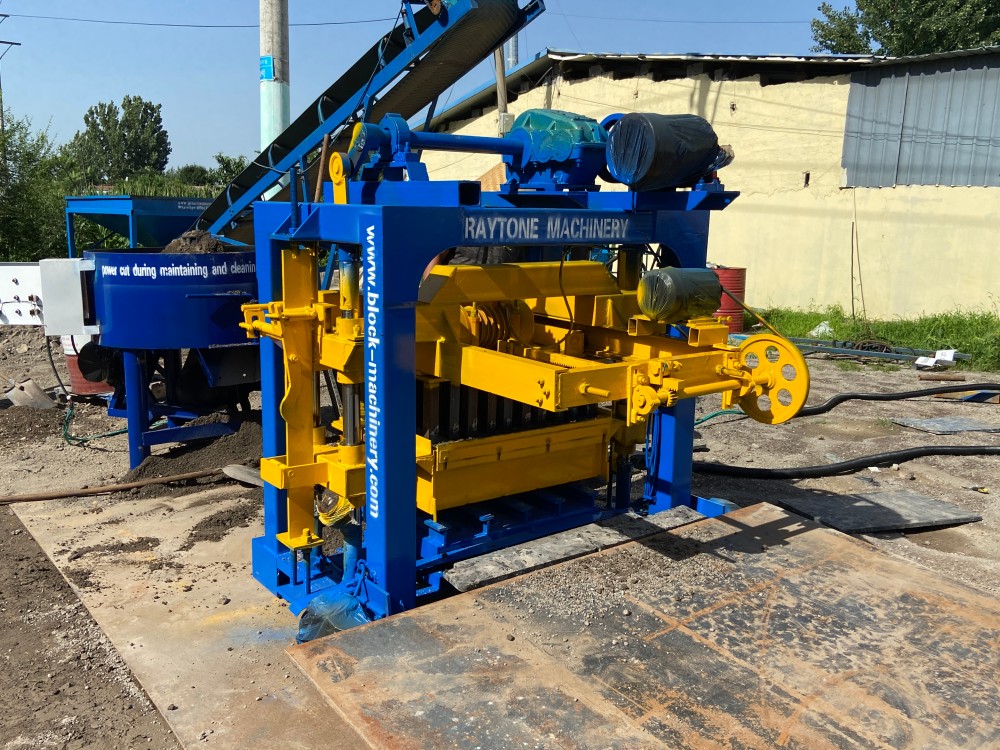

(2）QT4-40 host brick machine

• Total Power: 10.4KW
• Power: bottom vibrator: 3KW*2
• Top Vibrator: 2.2KW
• Equipped with JZQ350 reducer
• Mould Lift motor: 2.2KW
• Block Machine dimension: 1780*1430*1900mm
• Block Machine weight: 1500KG
• Cycle time: 35-40 Seconds
• The main frame of the manual block machine serves as the pillar of the entire system. It is usually made of sturdy steel and provides stability and support for all other components. The design of the frame is capable of withstanding the pressure applied during the block molding process, ensuring its service life and stable performance.

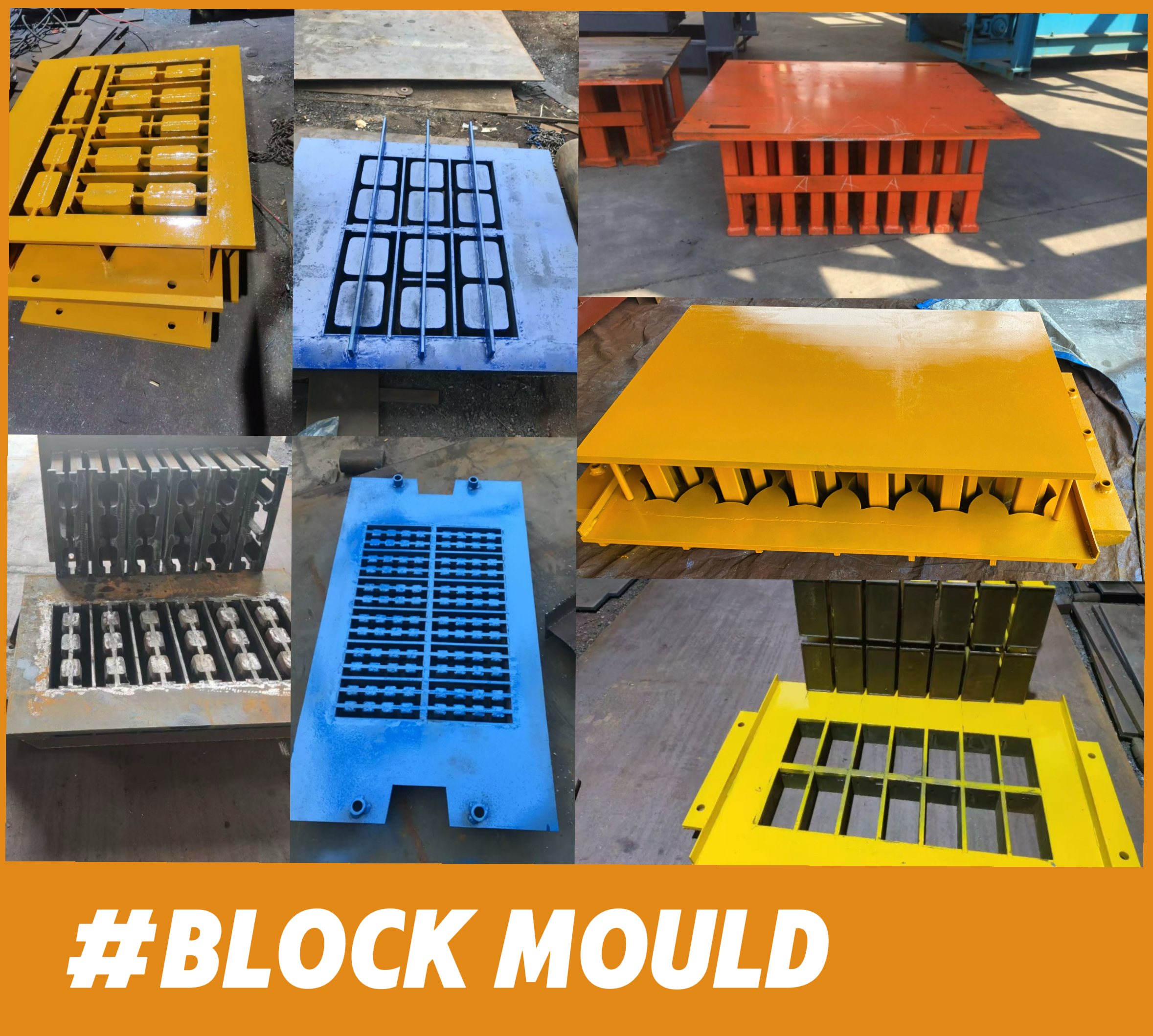

（3) Block Moulds for QT4-40 Manual Block Machine

The block moulds are made from 16# Manganese steel to give the mould long life, the paver brick moulds also need linear cutting procedure, it is more complicated. 900 degrees celsius high temperature heat treatment carburizing heat treatment makes the mould much more strong and durability, longer life.Cutting uses wire cutting to make the mold standard in shape and accurate in size. After heat treatment and carburizing technology, the rigid molecular structure is changed, the strength and hardness are increased, and it is more wear-resistant. After positioning processing and milling machine technology, the surface of the mold is smooth and smooth, and the dimensions are more accurate. The mould can be used around 100 thousand times.

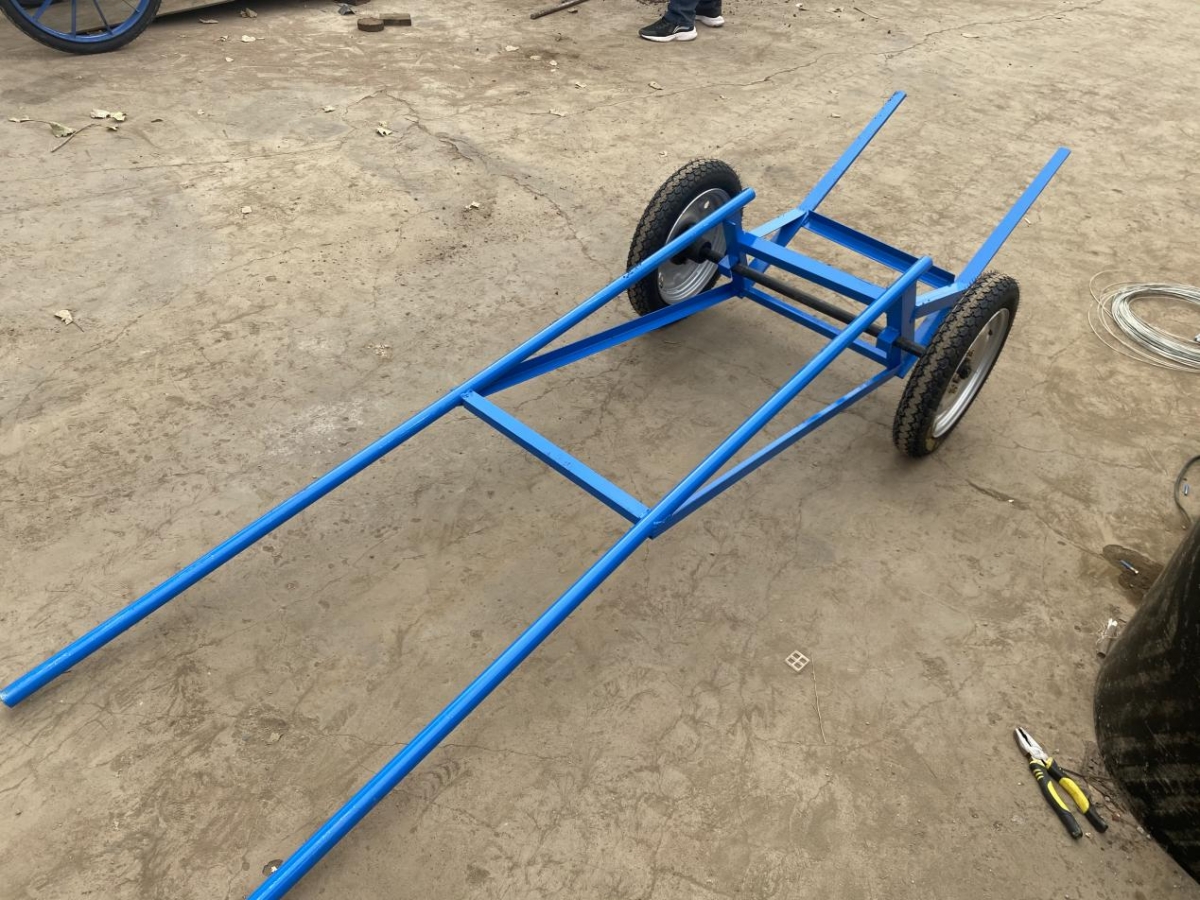

（4）Manual Trolley for QT4-40 Brick Machine

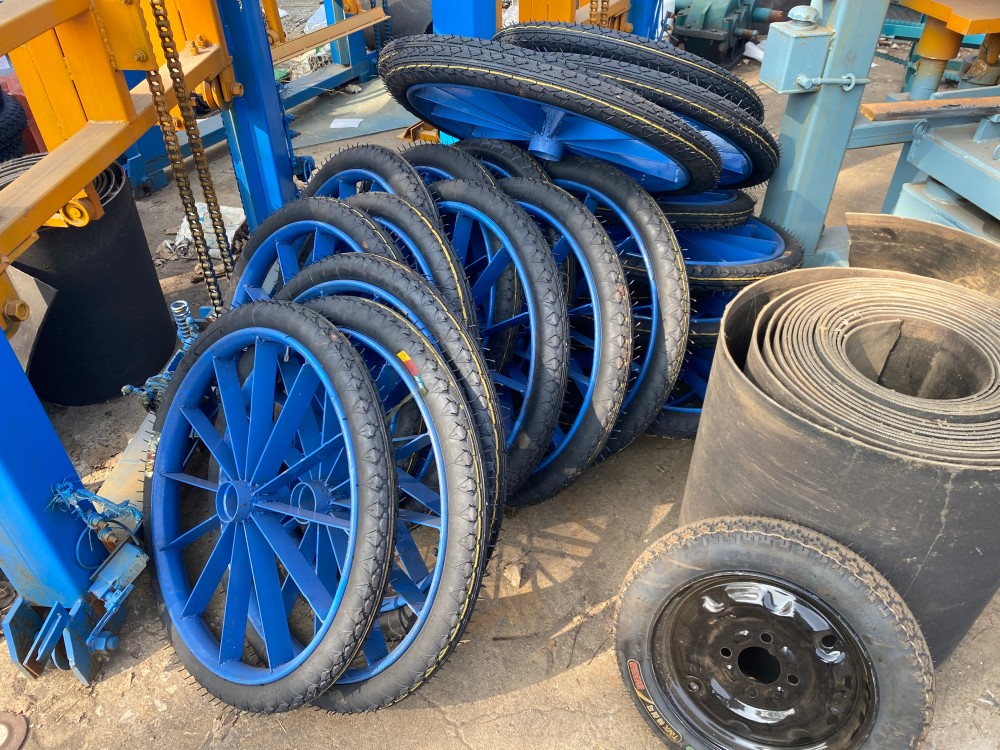

RAYTONE manual trolley is using good quality wheel instead of poor quality wheel only with several months life, one machine line is equipped with 2 sets of manual trolley.

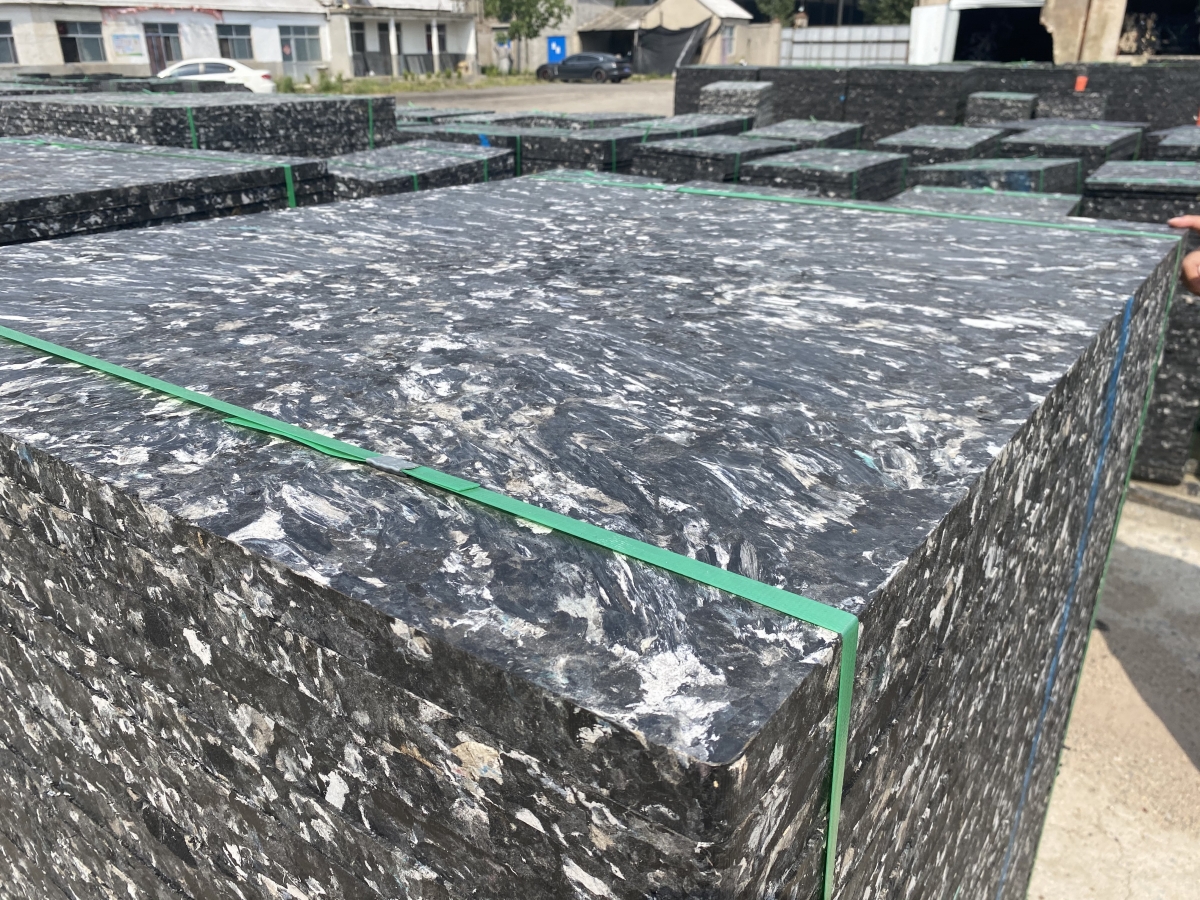

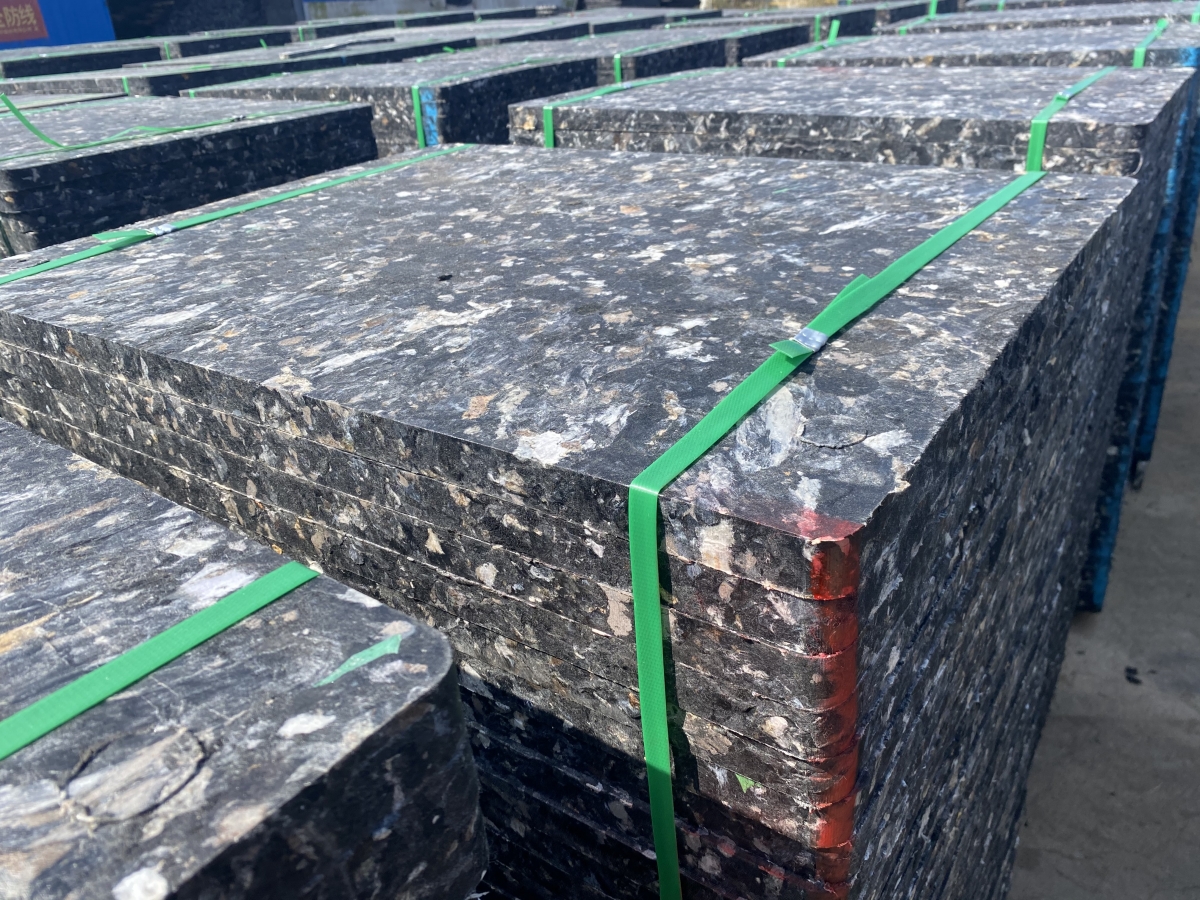

(5) GMT brick pallet for QT4-40 block making machine

The GMT brick pallets are made from the leftover materials of the car’s interior ceiling, seat cushions, etc. These materials contain a large amount of adhesives. After being crushed into small pieces, they undergo processes such as heating, high-pressure pressing, cooling, and grinding, and finally become brick pallets. These brick pallets have excellent quality and are currently the most cost-effective pallets among PVC pallets, wooden pallets, and bamboo pallets.

QT4-40 Manual Block Machine Daily Productivity

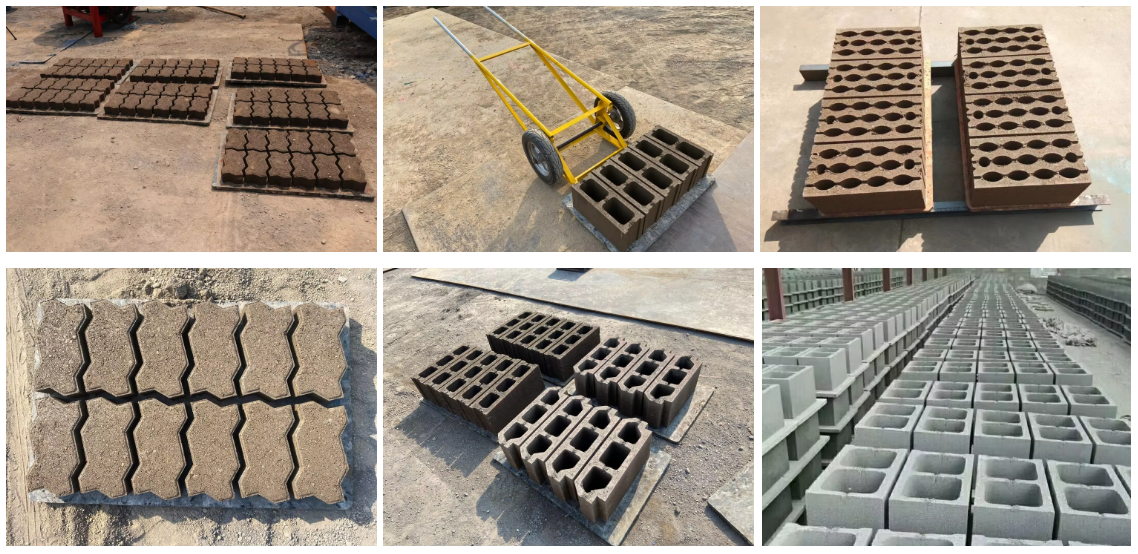

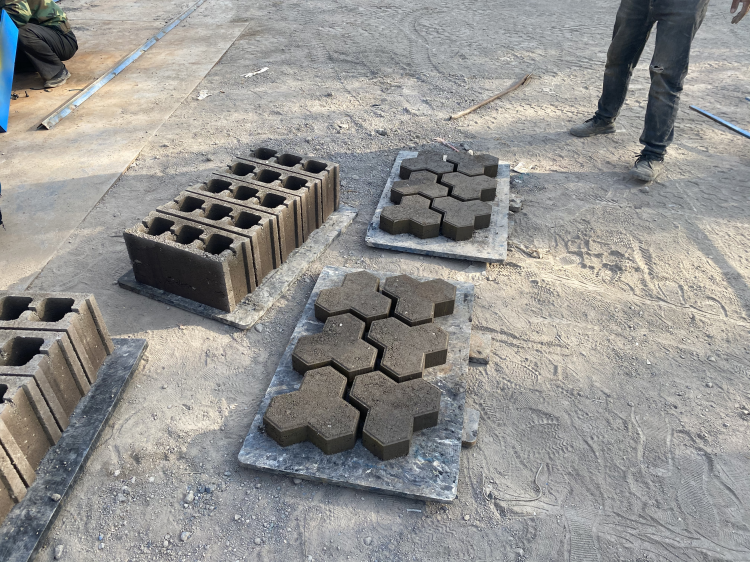

Packing List of QT4-40 Block Making Machine 7. Block Photos made from QT4-40 Block Machine The manual block machine can make most types of blocks via changing different block moulds;

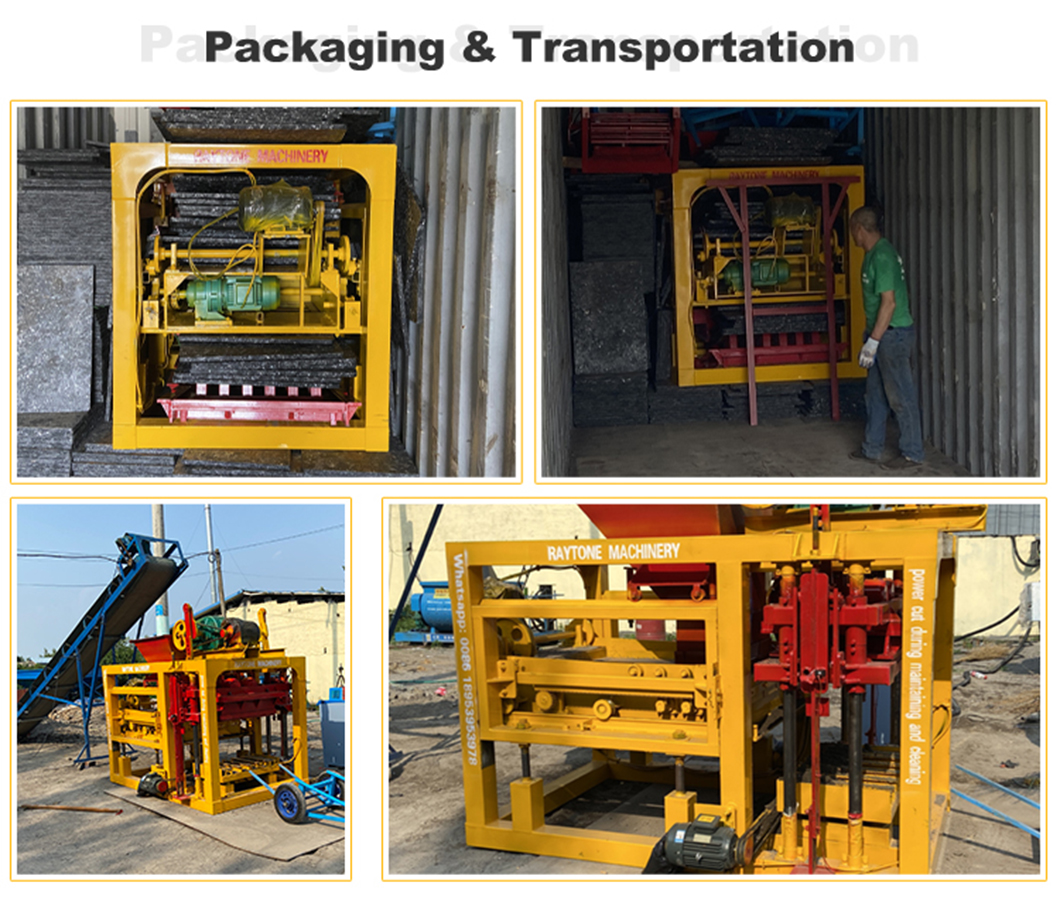

Shipping and Packing

We can package the machines according to your requirements. Whether it’s a plywood box or an iron frame, we can use either. Each machine will be wrapped in plastic film to reduce wear and tear. Our on-time delivery rate is 100%.
