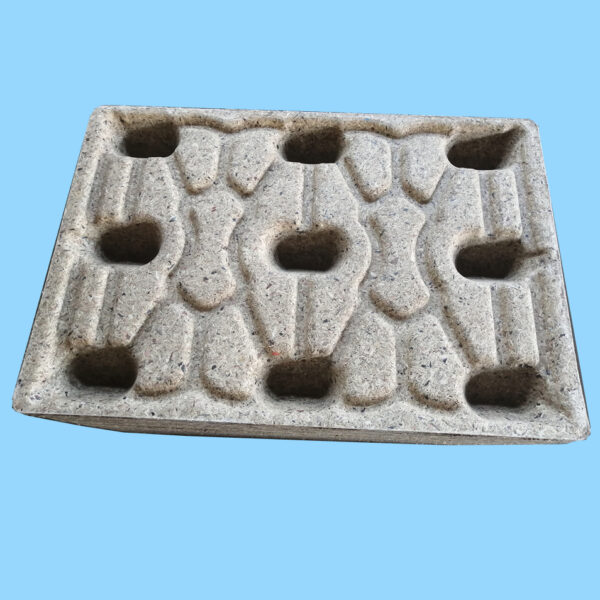

Molded Pallet Compressed Wood Pallet

The advantages of compressed wood pallet

• Environmental protection: Utilize waste materials to improve wood utilization, achieve recycling, regeneration and reuse, and the recycling rate can reach 100%.
• One-time molding: No nails are required for assembly, the surface is smooth and will not scratch the goods.
• Fumigation-free: Meet the requirements of international ISP15, no fumigation is required, and import and export customs clearance is more convenient and faster.
• Non-flammable: Strong fire resistance.
• Cost saving: The price is more than 50% cheaper than traditional coniferous or hardwood pallets;
• Four-way fork: It can meet the needs of manual hydraulic trucks and forklifts of various sizes at the same time and is easy to use.
• Space saving: Nested stacking, the height of 60 pallets is about 2.2 meters, which reduces the operating costs of the enterprise and saves a lot of transportation, warehousing and packaging costs for the enterprise; the same number of pallets saves 3/4 of the space compared with ordinary wooden pallets. A forklift can carry 60 pallets at a time, while ordinary wooden pallets can only carry 18-20 pallets at a time.
• Strong load-bearing capacity: According to the design structure of the pallet, the load-bearing capacity can reach more than 3 tons.
• The panel and the nine supports at the bottom are integrated and formed in one step. The reinforcing ribs extend in all directions in a criss-cross pattern, and the force is evenly distributed and forked from four directions.
• The moisture content is low, generally controlled between 6% and 8%. The pallet does not absorb moisture or deform during use.
• The weight is 50% lighter than hardwood pallet products.
• It can be transported without fumigation treatment, meeting import and export business.
• It can be made of wood processing residues, waste and low-grade wood.
• The product is environmentally friendly, recyclable and reusable, with low pollution and a recycling rate of up to 100%.
• The price is cheaper than traditional coniferous or broad-leaved wood.

3. How to maintain the compressed pallet?

• Pallets should be kept away from direct sunlight to avoid aging and shortening their service life.
• It is strictly forbidden to throw goods into pallets from high places. Reasonably determine the stacking method of goods in the pallet. The goods should be placed evenly and not eccentrically. Pallets carrying heavy objects should be placed on a flat ground or surface.
• It is strictly forbidden to throw pallets from high places to avoid the pallets breaking or cracking due to severe impact.
• When a forklift or manual hydraulic transporter is operating, the fork rod should extend as far as possible outside the pallet fork hole, and the fork rod should be fully extended into the pallet. The angle can only be changed after the pallet is lifted stably. The fork rod cannot hit the side of the pallet to avoid the pallet breaking or cracking.
• When the pallet is placed on the shelf, a shelf-type pallet must be used. The load capacity depends on the shelf structure, and overloading is strictly prohibited. Pallet loading fixation methods Pallet loading fixation mainly includes bundling, gluing, stretch packaging and other methods, which can be used in combination. After the protective pallet loading and reinforced pallet loading fixation, if it still cannot meet the transportation requirements, protective reinforcement accessories should be selected as needed. Reinforcement and protection accessories are made of wood, plastic, metal and other materials.

4. What size compressed pallet we have now?

5. what is the compressed wood pallet made process?

• Raw materials and shavings preparation: Lightweight wood is used (the larger the density of the pallet, the heavier it is). The shape of the shavings is generally 50mm long, 10-20mm wide, and about 0.5mm thick. Small-diameter wood, twig wood, or wood processing residues should be cleaned of dust, and the bark content should be strictly controlled, not exceeding 5% to ensure the quality of the shavings. The thickness of the shavings is 0.3-0.5mm. After magnetic separation, the wood chips are sent to the double-drum flaking machine to be processed into shavings, and then sent to the dryer. After drying, the moisture content of the shavings should be controlled within the range of 2-3%. Small shavings and unqualified oversized shavings need to be sorted and removed.
• Glue mixing: In order to prevent the shavings from breaking, it is not advisable to use a high-speed glue mixer, and a drum glue mixer is generally used. Two sets of spraying systems can be set up to spray two types of glue that should not be mixed. Generally, isocyanate is mixed with urea-formaldehyde resin, or phenolic resin is mixed with melamine resin, and the glue amount is 2%-15%, generally 4%-10%. The measured wood shavings and the quantitative urea-formaldehyde resin are fed into the rubber mixer at the same time. The moisture content of the mixed wood shavings should be controlled within the range of 8-10%.
• Glue spreading and hot pressing: Special equipment is used, and the glue spreading is carried out in two steps. First, the pallet foot is spread and pre-pressed, and then the flat part of the pallet is spread. Some shallow-foot pallets can also be glued at one time. The punch is fixed on the upper movable beam of the hot press, and the concave mold moves between the hot press and the material spreader. It is placed on the lower workbench of the hot press and is equipped with a special molding device. Spread the wood shavings mixed with glue in the mold, and then pre-press and hot press until the resin is completely cured, and then the mold can be lifted. First, spread the shavings after sizing into a metal mold in a quantitative manner and pre-form them with cold pressing. Then put them into the hot press to shape them.
• Edge trimming: mainly trimming, that is, removing excess flash on the edge of the product.

6. Precautions:

• When a hydraulic truck or forklift uses a pallet, the spacing between the fork teeth should be as wide as possible to the outer edge of the pallet fork, and the fork insertion depth should be greater than 2/3 of the entire pallet depth.
• When the hydraulic truck or forklift is moving the pallet, it should maintain a uniform speed up and down movement to avoid sudden braking or sudden rotation that may cause damage to the pallet and collapse of the goods.
• When the pallet is put on the shelf, it should be placed stably on the shelf beam, and the pallet length should be greater than the outer diameter of the shelf beam by 50mm.
