Raytone Block Machinery

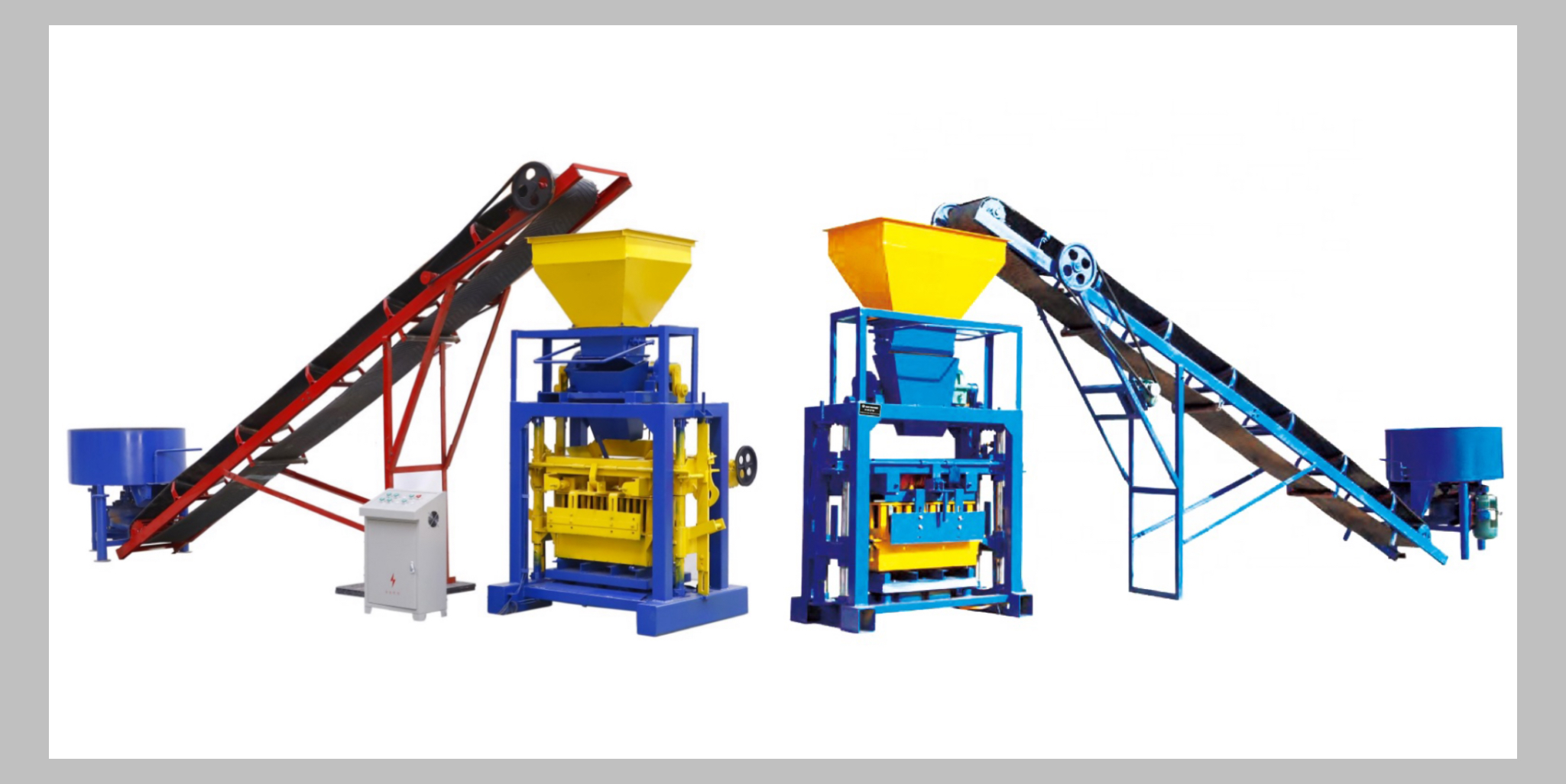

Manual Brick Making Machine – QT4-35 Model

Based on simple design concept, this QT4-35 manual brick machine has simple machine structure but with raw materials hopper, so it can save labor cost and improve the productivity efficiency.

QT4-35 manual brick machine can make various size hollow block, paver bricks, curbstones etc from the raw materials of cement, sands, crushed stones or stone powder etc.

Manual Brick Making Machine – QT4-35 Model

QT4-35 manual brick machine is also name QT40-1 manual block machine, its block moulds are all customized as per client requirements; QT4-35 manual brick machine productivity is 2560-3290 pieces of 8 inch hollow blocks per day; QT4-35 manual brick machine price is from 5000 USD to 15000 USD as per the extra block mould quantity; QT4-35 Manual Brick Machine Production Requirements: The following information is take 8 inch hollow block for example for the client reference, the production data may be a little different as per different block or brick producing
land area 200 Square Meters Water Consumption 1.8 T/day
Workshop area 40 Square Meters Electricity Voltage &Frequency 220V/380V/415V;50HZ/60HZ
Labors Quantity 3 workers Power Consumption 18.7KW*8 Hours=149.6 KWH;
Cement Consumption 5.35 Tons per day Sand consumption 21.7 tons per day
Crushed stones consumption 27 tons per day
Each single machines detailed introduction for QT4-35 manual brick machine (1) JQ350 concrete mixer for QT4-35 manual brick machine function: to mix the raw material of sand, loosen stones, cement, etc Item: JQ350 Mixer Power: 7.5kw Feeding capacity: 560L Discharge capacity:350L Overall dimension (mm):1500*1200*1200 There are two models of concrete pan mixer now, the first one is using the electric reducer model, the reducer is used since the pan mixer comes out, the reducer need to be maintained after several months use, and reducer can be replaced if it got broken;     QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   The second model is using the truck rear axle gearbox model. This model doesn’t need to maintain, its life is very long, after the oil is filled in, it can be used all the time. But once the truck axle reducer got broken, it cannot be repaired, but its broken chance is very small.     QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   Also for the concrete mixers, its inner side can add one piece of round steel plate to make it long life, and can also add the anti-wear bushes to protect the mixer.     QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   (2) 6 Meters Belt Conveying Machine for QT4-35 manual brick making machine Length: 6000mm Belt width: 400mm Motor power: 1.5KW     QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   (3) Host manual brick machine
(1) Dimension of host machine 1800*1500*2500mm (6) labour 4 workers
(2) Weight of the host machine 1.5T (7) Voltage customized
(3) Moulding period 35-45 (8) Toal required machine power 23.15KW
(4) pallet size 850*550*20mm (9) Diesel Genset capacity 30KVA
(5) Vibration force 50KN (10) workshop area 200 m2
RAYTONE host QT4-35 manual brick machine also equip with the function of Electrical Push-pulling for the top mould by add an electric motor. The QT4-35 manual block making machine is using vibration box instead of vibrator motors, this is one big difference with QT4-40 manual block machine.   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine Host manual brick machine
(1) Dimension of host machine 1800*1500*2500mm (6) labour 4 workers
(2) Weight of the host machine 1.5T (7) Voltage customized
(3) Moulding period 35-45 (8) Toal required machine power 23.15KW
(4) pallet size 850*550*20mm (9) Diesel Genset capacity 30KVA
(5) Vibration force 50KN (10) workshop area 200 m2
for the electric panel, RAYTONE manual brick machine factory is using good quality buttons, good quality electrical parts.   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine       QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   (4) Manual Block Trolley for QT4-35 manual block machine Function:The trolley is used to transport the blocks on pallet to curing area.Two trolleys are equipped for each machine; RAYTONE block machine factory is using high quality wheels for the block trolley.     QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   (5) Modified block machine line The QT4-35 manual block machine can also be designed to be with a block conveying out platform, and equip with a stacking machine like the photo below:     QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   The produced blocks for QT4-35 manual brick making machine     QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine       QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   7. Packing list for QT4-35 manual brick machine
1 JQ350 Pan Mixer 1 set 5 Manual trolleys 2 sets
2 6M belt conveying machine 1 set 6 GMT brick pallet 600 pieces
3 QT4-35 Host Brick Machine 1 set 7 Spare parts 1 set
4 Electrical PLC control Panel 1 set 8 Free hollow block mould 1 set
  QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   8.GMT brick pallet for QT4-35 manual block machine RAYTONE GMT brick pallet is containing of high content of high quality glass fiber, its life can reach 8 years.
QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine

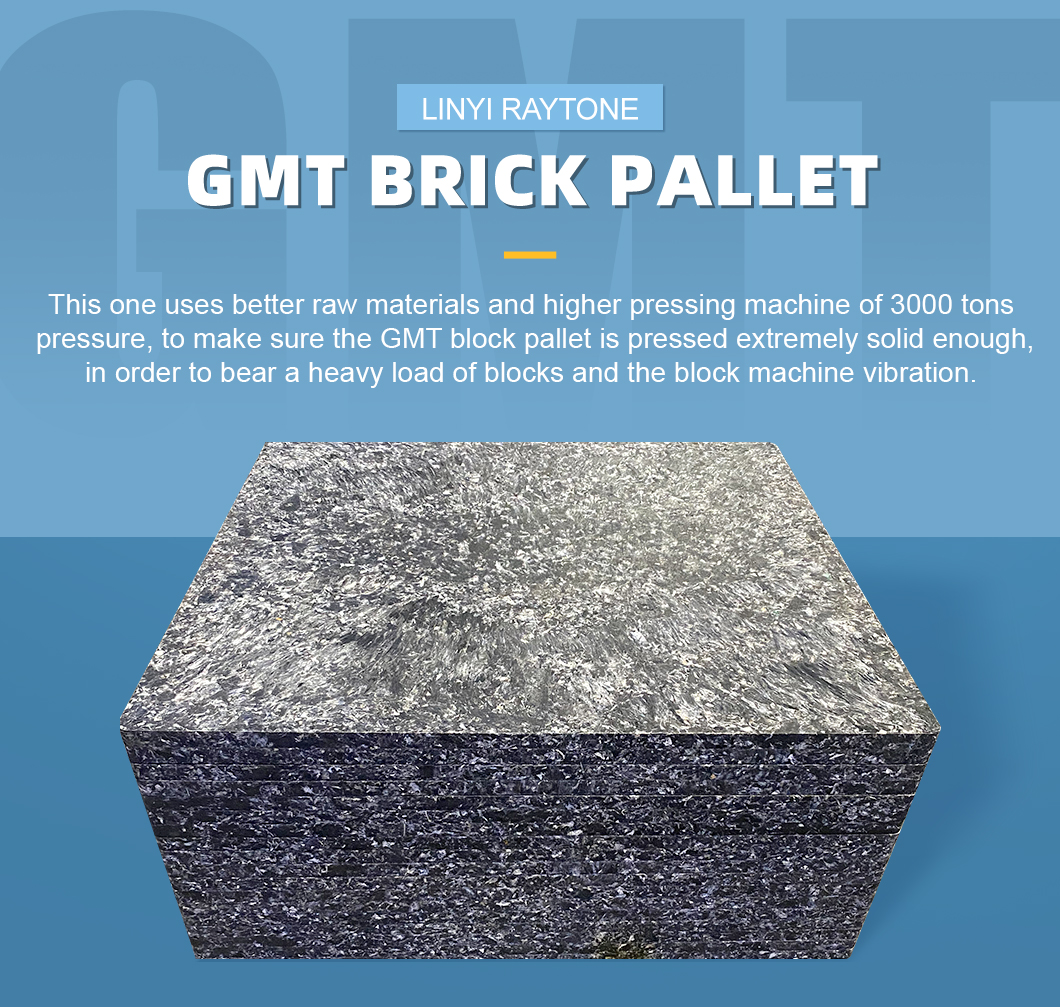

GMT brick pallet
The GMT brick pallet page link is as follow, please check for reference. GMT BRICK PALLET Daily block productivity for QT4-35 manual brick making machine
Theoretical production capacity
Size(LxWxH) (mm) Photo Forming Period (S) Pcs/ Mould Pcs/Hour Pcs/ 8 hours
(1) hollow block 400*250*200   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 3 240-308 1920-2468
(2) hollow block 400*200*200   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 4 320-410 2560-3290
(3) hollow block 400*150*200   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 5 400-514 3200-4114
(4) hollow block 400*100*200   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 7 560-720 4480-5760
(5) Solid Brick 240*50*115   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 18 1440-1848 11520-14784
(6) Porous Brick 240*115*90   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 9 720-924 5760-7392
(7) Curbstone 500*200*300   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 1 80-102 640-816
(8) “I” shape paver brick without color 200*163*60   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 6 480-616 3840-4928
(9) “S” Shape Paver Brick without color 225*112.5*60   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 9 720-924 5760-7392
(10) Holland Brick without color 200*100*60   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 9 720-924 5760-7392
(11) Square Paver without color 250*250*60   QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine   35-45 3 240-308 1920-2468
9. FAQ (1) What is Packing method ? For container loading, normally is it nude packing, it is safe in the container; If by LCL, we an pack the block machine into wooden case or steel box, but need extra cost; (2) How many workers are needed for the QT4-35 manual block machine? The block machine need 4-5 workers, one operates the mixer and feeds material, one operates the host machine, and two workers transport the blocks. The office, curing area, stacking area are arranged according to your specific conditions. (3)What’s motor and electric brand we choose for our machine? RAYTONE block machine factory normally supply the China famous brand motors like HUAXING or SHANBO brand copper electric motors, not using any aluminium motors. Some buyer can also choose  Siemens brand motors, also need extra cost. (4) What kind of steel my machine and molds use ? RAYTONE block machine factory is using Q235B for block machine, Manganese steel for molds. The mould is More durable. (5) Will you send engineer to install for user? Yes, we have technician service team. They will supply service as per needs. (6) Are there any spare parts together with the machine ? Yes, we will send spare parts together with machine, the user could use more than two years. (7)Do you supply free technical service during later production ? Yes, we have online technical service in 24hours. (8) What is the Warranty for the machine? For the machine,we have 1 years warranty(except the wearing part ).     QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine QT4-35 Manual Brick Making Machine- RAYTONE- Block Machine Manufacturer,Brick Pallet factory,Concrete Block Machine,Brick Machine,Block Machine,Block Making Machine,Brick Making Machine,Cement Block Machine,Block Machine Factory,Cement Brick Machine,Brick Machine Manufacturer,Automatic Block Machine,Mobile Block Machine,Automatic Brick Machine,Semi Automatic Block Machine,Manual Block Machine,Semi Automatic Brick Machine,Manual Brick Machine,GMT brick Pallet, plastic Brick Pallet, Pallet for blocks,GMT pallet,Fiber Brick Pallet,Clay Brick Machine
